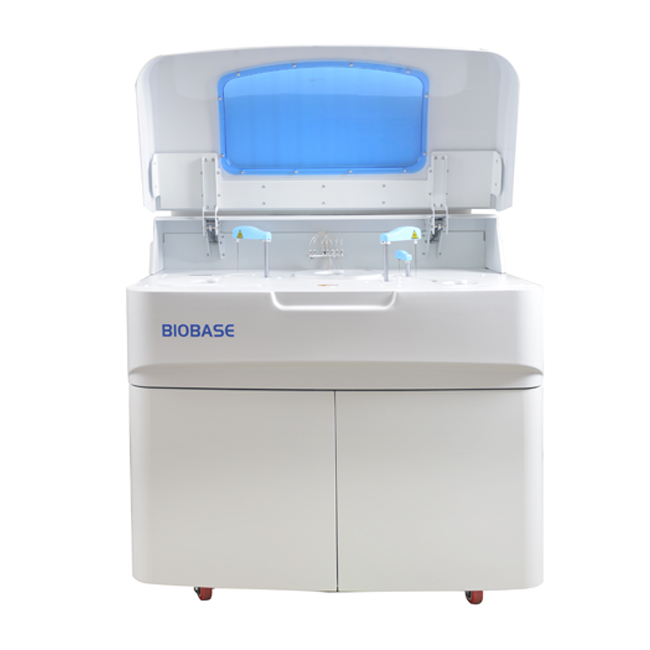

BIOBASE BK-400(CRYSTAL) Auto Chemistry Analyzer

Manufacturer: BIOBASE

Model: BK-400(CRYSTAL)

Origin: China

Warranty: 12 months

Features: Real-time display reagent remaining volume; 45 Reagent positions; 60 Sample positions (90 sample positions optional); 120 Reaction cuvettes (reusable); 400 tests per hour with STAT function; Auto 7-step washing system; One sample probe, one reagent probe, anti-collision function, liquid level detection function; Optional built-in sample & reagent barcode reader

Type: Discrete, Fully automatic

Throughput: 400Tests/Hour

Analysis Method: End-point, Fixed-time, Rate, Turbidimetry

Sample unit

Sample Positions: 60 or 90 sample positions, including calibration, quality control and emergency

Sample Volume: 2~70μl (0.1μl stepping)

Sample Probe: Teflon coating probe, Liquid level sensor, Anti-collision function

Probe cleaning: Automatically wash interior and exterior

Analysis Items: Analyzing maximally 45 items at the same time

Reagent unit

Reagent Position: 45 refrigerated reagent positions

Reagent Volume: 20~350μl (1μl stepping)

Reagent tray cooling: 2℃~8℃cooling for 24 hours

Reaction unit

Temperature Control: 37℃±0.1℃, real-time monitor

Cuvettes: 120 reusable cuvettes (optical path length 6mm)

Mixer probe: After adding reagent and sample, mix immediately

Reagent Probe: Teflon coating probe, Liquid level sensor, Anti-collision function

Washing: Automatic water cleaning and drying system

System Adjustment: System can record the blank value and get more, accurate results by deducting blank base value of each cuvette

Light Source: 12V/30W halogen-tungsten lamp, 2000 hours lifetime

Receiver: 8 precision photo receivers

Wavelength Range: 340,405,450,510,546,578,630,700nm

Linear Range: 0.000~3.000Abs

STAT Function: Emergency samples can be placed in the sample tray at any time

Computer System: Windows 7/8/10, LIS system available

Data Processing: Reaction curve and data display function

Power Supply: AC110/220V±10%, 60/50Hz

Interface: LAN Port

Consumption: 500w

Package Size(W*D*H): 1218*958*1431mm

Net/Gross Weight: 242kg

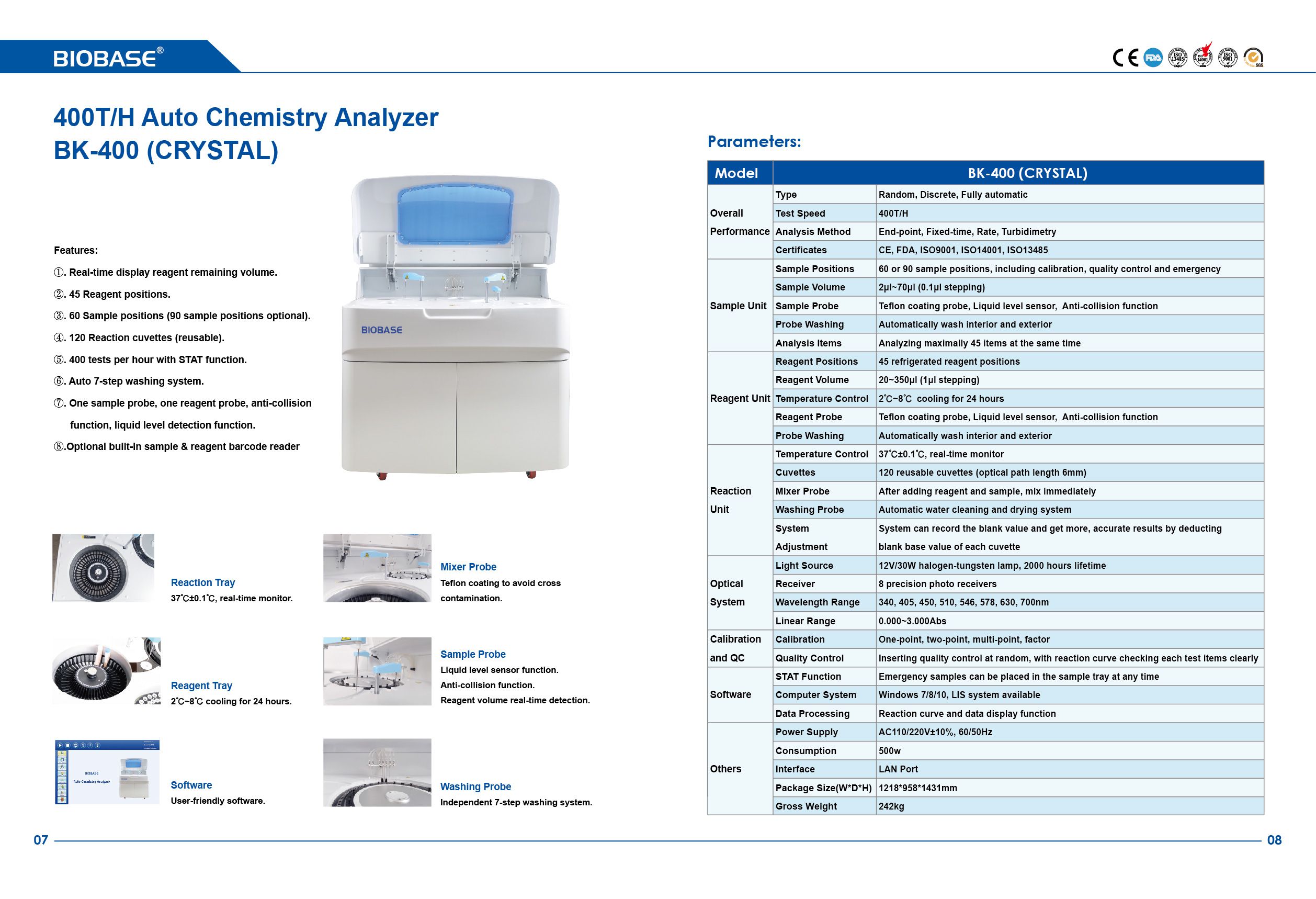

Brochure
