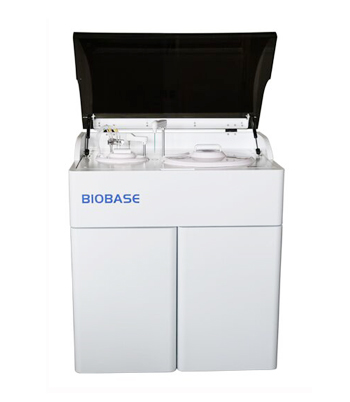

BIOBASE BK-240(PEARL) Auto Chemistry Analyzer

Manufacturer: BIOBASE

Model: BK-240(PEARL)

Origin: China

Warranty: 12 months

Features: 40 Sample positions; 80 Reagent positions; 44 Reaction cuvettes; 200 Tests/ Hour

Type: Vertical,Discrete,Fully automatic

Throughput: 200T/H

Analysis Method: End-point,kinetic,Two-point

Sample & Reagent Unit

Sample Positions: 40 sample positions, including calibration, quality control and emergency

Reagent Positions: 80 refrigerated reagent positions

Sample Volume: 1ul ~30ul (0.1ul stepping)

Reagent Volume: R1&R2:20ul ~300ul (1ul stepping)

Sample& Reagent Probe:Automatic liquid level detecting，Collision protection function，Probe internal/external washing，Probe deepth automatic adjustment

Probe cleaning: Automatic washing both interior and exterior

Reagent tray cooling: Continuous 2℃~8℃ cooling within 24 hours

Reaction Unit

Reaction Time: 10 minutes

Temperature Control: 37℃±0.1℃, with online software monitor the temperature

Cuvettes: 44 reusable reaction cuvettes (optical path length 6mm)

Washing: After finishtesting, washing probe wash cuvettes automatically

Light Source: Halogen-tungsten lamp

Wavelength: 300-700nm,8 wavelengths, Precision±1nm (4 positions are optional)

Absorbance range : 0-4.00Abs

Linear Range: 0.0001Abs

Intelligent software: Automatic washing cuvette when start test&finish test，Automatic detect sample& reagent volume，Reaction temperature detecting when startup

Alarm: Automatic alarm of no reagent,no sample,wrong run,out of linearity range etc, Automatic re-test sample in next order after no reagent

Software: Windows 7,Windows 8 or above, windows XP

Power Supply: ~100-240V, 50-60Hz,1000VA

Package Size(W*D*H): 870*720*1320mm

Gross Weight: 136kg

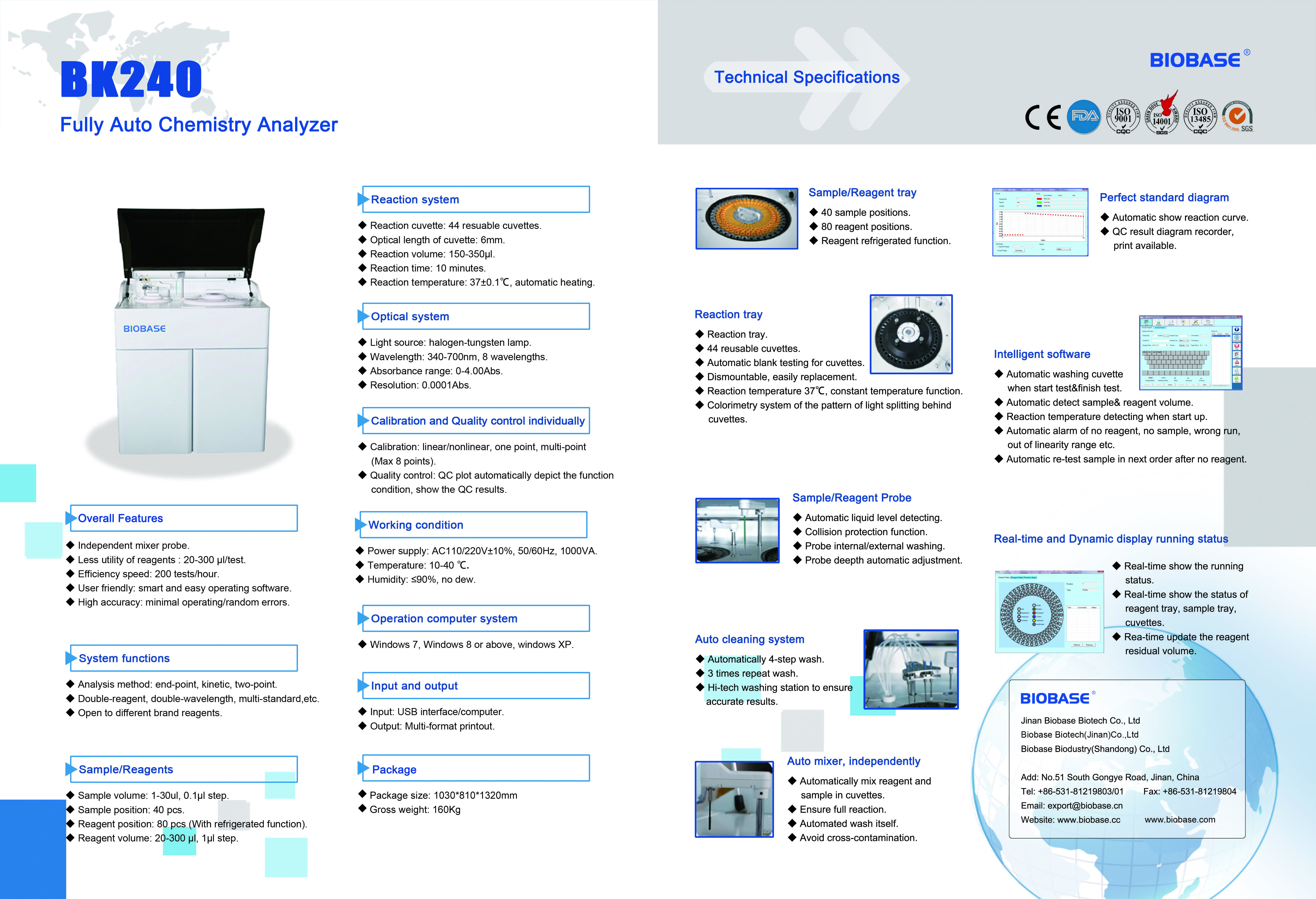

Brochure
