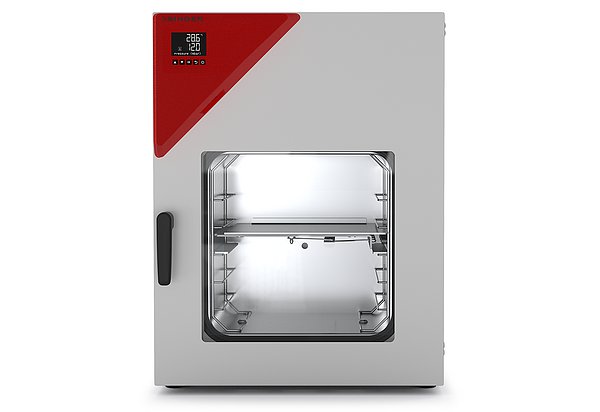

Binder VD056-230V Vacuum Drying Chamber (10°C ~ 220°C, 1.2kW)

- Temperature range: +10°C ~ 220°C
- Temperature variation at 100 °C [± K]: 1.5
- Temperature fluctuation [± K]: 0.1
- Heating-up time to 100 °C [min]: 80
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- RS 422
- Leak rate [bar/h]: 0.01
- Rated Voltage [V]: 230
- Nominal power [kW]: 1.2
- Phase (Nominal voltage): 1~
- Vacuum connection with small flange [DN mm]: 16
- Measuring access port with small flange [DN mm]: 16
- Universalanschluss für Luft / Inertgas, mit Durchflussbegrenzer (RP"): 3/8
- Interior volume [L]: 55
- Weight [kg]: 95
- Permitted load [kg]: 60
- Load per rack [kg]: 20
- Internal Dimensions (W x H x D) (mm): 400 x 400 x 343
- External Dimensions (W x H x D) (mm): 638 x 815 x 461
- Door: 1
- Number of shelves (std./max.): 1/5
- 1 aluminium racks
