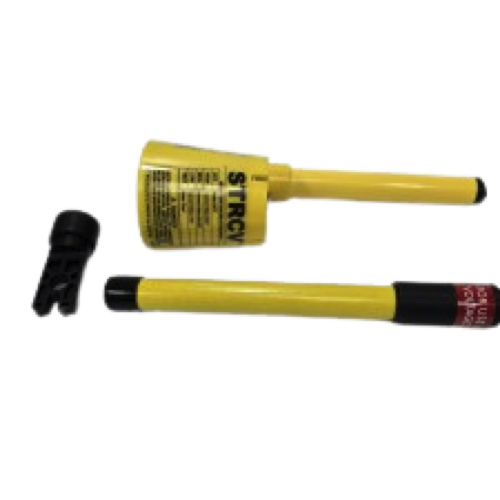

Bierer Meters STRCV Service Tester Receiver (ST500, ST800, DCI-50, DCI-100)

The STRCV has a sensor in the end of the bent probe that picks up the

current signal originating from either the ST500, ST800, DCI-50, or

DCI-100 and indicates the direction of that current pulse on the display

via a left or right directional LED.

For identifying concentric neutral primary cables many times the

STRCV needs to be more sensitive for applications including but not

limited to:

1) Cables in Conduit

2) Network Applications

3) Long runs of cable (>1 mile)

The STRCV-CT incorporates a BNC connector so that a "wrap around

CT" can be used rather than the sensor at the end of the bent probe.

STRCV Switch Positions

● OFF position - Unit Off for storage and transit.

● High - 300+ Amp position

● Medium- 50 – 300 Amps position

● Low- Less than 50 Amp position

“T" position tests internal battery voltage and display function.
