Bierer Meters ST500 Service Tester Phase Identifier (500 Amps)

The ST500 puts a high magnitude pulse between the neutral/hot leg or hot leg/hot leg for any secondary service (120V, 208, 277, 480V). It cannot be fooled by telephone and cable television bonding often missed by continuous loading devices.

• Identify Bad Conductor(s) From the Transformer to the Meter Base

• Indicate Integrity of Neutral Conductor to Prevent Excessive House Ground Currents

• Locate Both Hot Legs and Neutral at the Pedestal and/or Transformer Blocks.

• Locate Bad Connectors on Overhead Spans

• Identify De-energized or Energized URD Primary Cable in a Manhole or Ditch if Secondary Power is Present

• Identify Energized Feed In/Out on Primary URD Transformers, Switches and Riser Poles if Secondary Power is Present

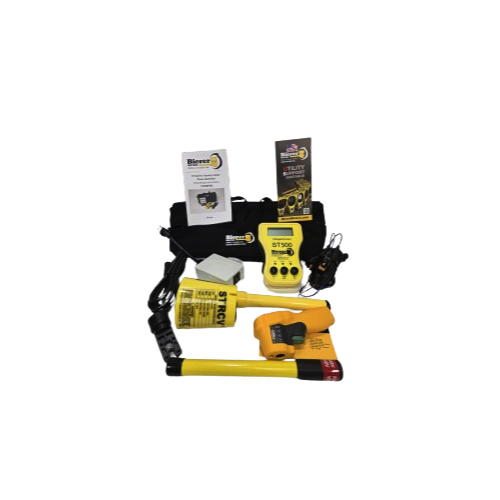

• Shown with ST8SC - standard Small Clamps

Includes:

500 amp service tester

Test Leads

Small bag

Manual
