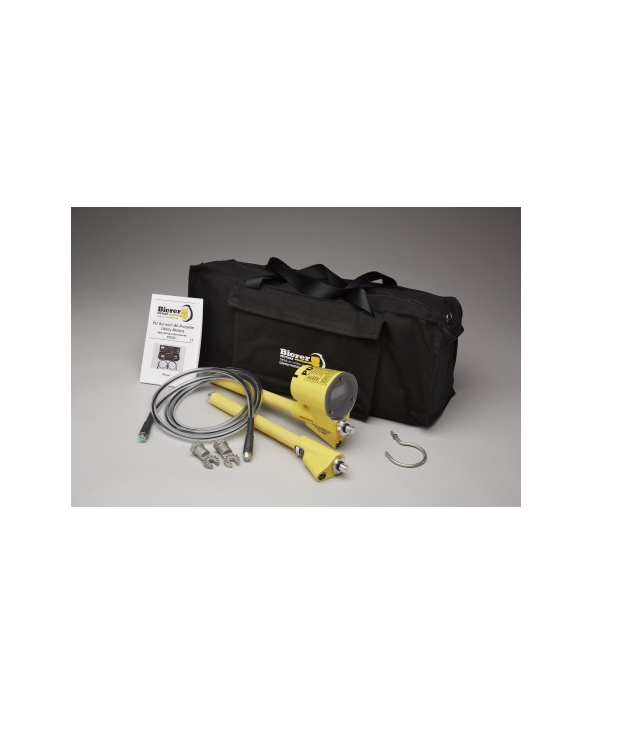

Bierer Meters PD50A Phasing Utility Meters (0 – 50kV; 1000 ft)

Functional Description: Standard Phasing Meter, Phase Secondary Voltages, Phase Capacitive Test Points, *Test Lightning Arrestors, Test Regulators off Neutral, Measure and Discharge DC voltage on capacitor banks, Measure DC Voltages up to 50kV, Measure at any Frequency Range up to 400Hz, *Hi-Pot URD Cable, *Cable Identifier, *Identify Phase Sequence from 120/208 Volts to 50kV

Minimum Operating Temperature: 0 degree Fahrenheit (-18 degrees Celsius)

Maximum Operating Temperture: 120 degrees Fahrenheit (49 degrees Celsius)

Max. Operating Range: 1000 ft. of Interconnect Cable (305 meters)

DC specifications: 0 – 50kV with +/-1% Accuracy throughout Ranges

AC specifications: 0 – 50kV with +/-1% Accuracy throughout Ranges

Physical Dimensions: Meter Probe, 17.5 in. long (44.6 centimeters) X 4 in. wide (10.2 centimeters) X 7 in. high (17.8 centimeters)

Weight: 2.5 lbs. (1.1 kilograms) Meter Probe, .5 lbs. (.225 kilograms) Second Probe

Applications: Measure and Test AC or DC Voltages from 0 – 50kV while replacing numerous single use devices.

* Additional accessory required
