Bierer Meters PD35A Phasing Utility Meters (35kV; True RMS)

Applications:

Capacitive Test Point Phasing Meter

Regulator Neutral Detector

Measure True RMS Voltages

Commercial/Industrial Meter

Phasing or Measuring Secondary Voltages, Replacing 600V Voltmeters

Conventional Phasing Voltmeter for Overhead and URD Systems from 0-50kV Phase to Phase

DC and Multiple Frequency AC up to 400Hz

High Line Resistive Voltmeter*

Phase Sequence/Rotation Meter*

DC Leakage Tester* (lightning arrestor tester)

Hi Pot URD Cable*

DC Cable Tracer*

*Optional Adapter Required

Large (3/4") LCD Digital Meter with Backlight

Multiple Ranges 2kV, 20kV, 35kV

Completely Shielded Housing for Meter and Second Probes

Completely Shielded Interconnect Cable(Insulated 35kV to Ground), that Does NOT Have to be Held Off of Grounded or Live Objects for Fear of Shock or Interfering with the Reading

Interconnect Cable Lengths up to 100ft.

Patented Input Circuitry

The Most Accurate High Voltage Meter Available, with Accuracy to +/- 1%

Both Probes are Impact and Water Resistant Designed to Withstand Wear

Both Probes are Stored in Either a Highly Durable Padded Carrying Case or a Canvas Bag

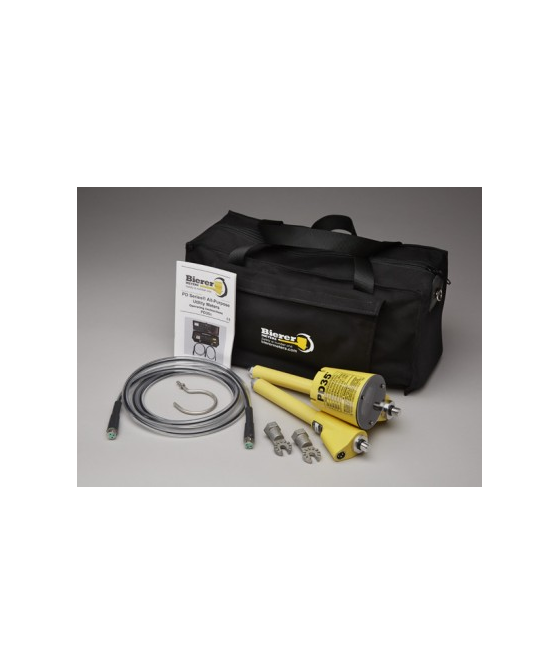

Includes:

0 – 35kV All-purpose utility meter

8 ft. regular cable

hook probe

straight probe

3kV power supply

manual

standard bag

Manual
