Bierer Meters PD25A Phasing Digital Meter (1000 ft; 25kV)

Functional Description:

Standard Phasing Meter

Phase Secondary Voltages

Phase Capacitive Test Points

*Test Lightning Arrestors

Test Regulators off Neutral

Measure and Discharge DC voltage on capacitor banks

Measure DC Voltages up to 25kV

Measure at any Frequency Range up to 400Hz

*Hi-Pot URD Cable

*Cable Identifier

*Identify Phase Sequence from 120/208 Volts to 25kV

Minimum Operating Temperture: 0 degree Fahrenheit (-18 degrees Celsius)

Maximum Operating Temperture: 120 degrees Fahrenheit (49 degrees Celsius

Maximum Operating Range: 1000 ft. of Interconnect Cable (305 meters)

DC specifications: 0 – 25kV with +/-1% Accuracy throughout Ranges

AC specifications: 0 – 25kV with +/-1% Accuracy throughout Ranges

Physical Dimensions: Meter Probe, 14.5 in. long (36.8 centimeters) X 4 in. wide (10.2 centimeters) X 7 in. high (17.8 centimeters)

Weight: 2 lbs. (.9 kilograms) Meter Probe, .5 lbs. (.225 kilograms) Second Probe

* Additional accessory required

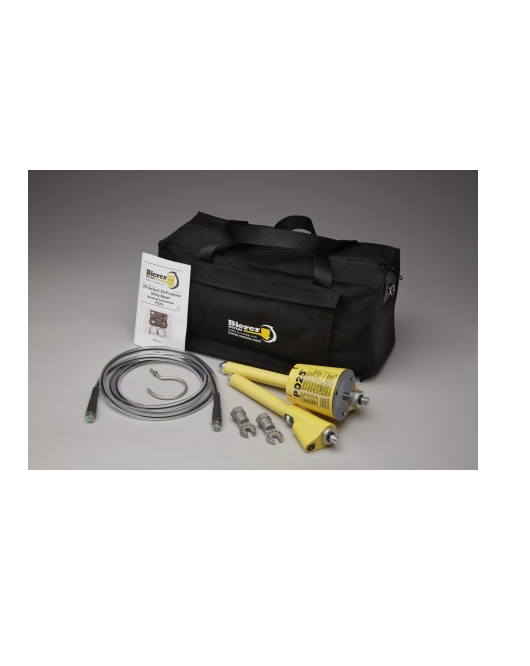

Includes:

0 – 25kV All-purpose utility meter

8 ft. regular cable

Hook probe

Straight probe

Manual

Standard bag

Datasheet
