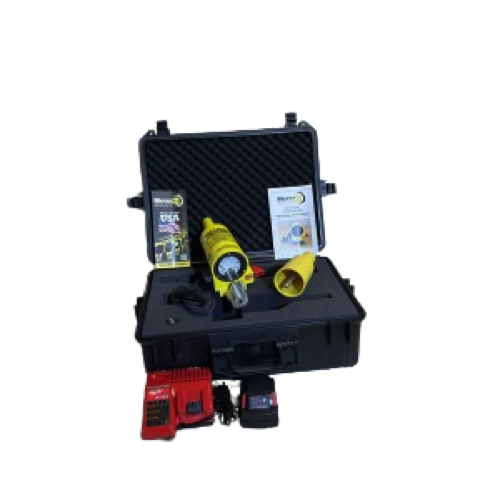

Bierer Meters HP-72 Hi-Pot Meter (7.2kV)

The Hi pot meter is designed to hi pot cable at 7.2kV phase to

ground.

The hi-pot DC diode is built into the meter and the interconnect

cable between the meter and second probe is removable and available in varying lengths.

There are two selector toggle switches on meter, one on the back and one on the side of the meter housing. The toggle on the back allows the user to select between 7.2kV Test. The selector switch located on the side allows the user to test the meter operation and turn on an LED back light for low light work conditions.

Note:

Meter back-light and test operate off of a 9volt battery located in the meter housing.

The meter will still operate with a dead battery but the light and test functions will not.
