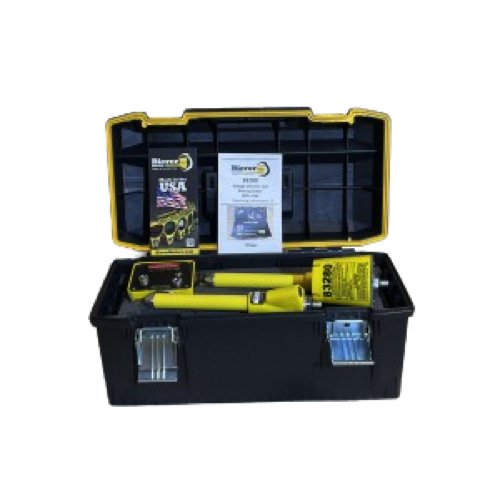

Bierer Meters 83280 Voltage Detector And Phasing Tester (16 ft; 500 volts – 35kV)

Functional Description:

Standard Phasing Meter, Phase Capacitive Test Points, Stand alone Voltage Detector, Stand alone Capacitive test point Tester, *Hi-Pot URD Cable

Minimum Operating Temperture: 0 degree Fahrenheit (-18 degrees Celsius)

Max. Operating Temperture: 120 degrees Fahrenheit (49 degrees Celsius)

Maximum Operating Range: 16 ft. of Interconnect Cable (4.9 meters)

DC specifications: N/A

AC specifications: 500 volts – 35kV

Physical Dimensions: Meter Probe, 14.5 in. long (36.8 centimeters) X 4 in. wide (10.2 centimeters) X 7 in. high (17.8 centimeters)

Weight: 2 lbs. (.9 kilograms) Meter Probe, .5 lbs. (.225 kilograms) Second Probe

* Additional accessory required
