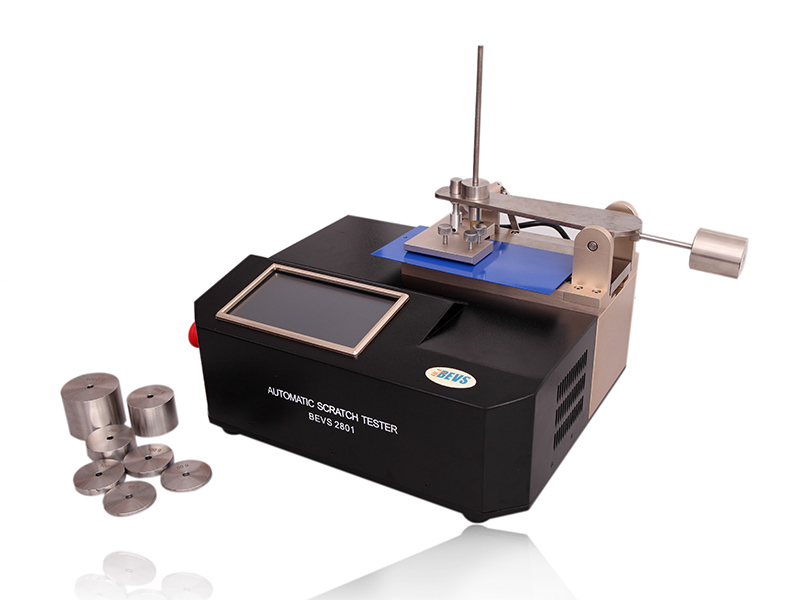

Bevs BEVS 2801 Automatic Scratch Tester (35mm/s, 65 mm)

Scratch Speed: 35mm/s

Stroke length: 65 mm

Power: 220V/50Hz or 110V/60Hz

Stylus: Tungsten carbide hemispherical stylus, diameter 1mm

Metallic test panel size: 100×150×0.2mm(L×W×H)

Standard: ISO1518, BS3900.

Introduction:

Scratch Tester is applied to the scratch resistance performance evaluation of single coating or complex coating system in insulated color coated sheet. It will be known the coating scratch resistance performance by evaluating whether the coating is scratched by tungsten carbide hemispherical stylus with a certain weight or the maximum load of the coating which can not be scratched.

The Scratch Tester of BEVS is complied with the standards of ISO1518, BS3900. Enable to display the graph of scratch on the screen in real time and show the test result on the screen,it  will directly display"OK "or "NG "

Features:

Big LCD design,touch-screen  operation

Adjustable work platform---More convenient

Display the test result on the conductive substrate

High Hardness Scriber---More durable

Special design for sample clamp---Equipped with ruler

Show the testing procedure with real time graph

Order information:

BEVS 2801 Scratch Tester

BEVS 2801/P/001 Tungsten carbide hemispherical stylus, diameter: 1mm

Manual
