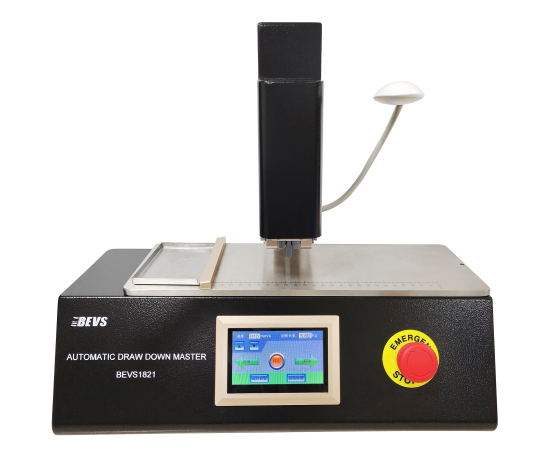

Bevs BEVS 1821 Automatic Drawdown Master (10-150mm/s, 2-5kg)

Drawdown speed: 10-150mm/s

Pressure: 2-5kg

Scraper angle: 85°

Coating size: A5

Dimension: L265 x W270 x H420mm

Power supply: 110V/220V, 50/60HZ

Introduction:

The BEVS 1821 Automatic Drawdown Master is a dual-purpose machine that integrates grind gauge scraper drawdown and film applicators drwadown. Benefit form its constant pressure and speed, the drawdown is of high repeatability which eliminates human error. When doing a grind gauge scraper drawdown, place the grind gauge and scraper, click the button to start the drawdown. Film applicators drwadown is the same way to use. The machine is easy to use and clean which brings users great convenience.

Features:

Touch panel control

Stable speed and automatic drawdown

Adjustable speed

With light source

Real time display adjustable pressure

Support various grind gauges and film applicators

Standard:

ASTM D333, D1210, GB/T6753, ISO1524

Order Information:

BEVS 1821 Automatic Drawdown Master
