Bevs BEVS 1818G Mini Automatic Film Applicator (250mm, glass)

Speed: 1-200mm/s

Stroke length: 250mm

Accuracy: 1mm/s

Test panel: 320 x 220mm(Max)

Bed types: Vacuum/glass

Bar coater: Diameter: 8-18mm/ Length: 200mm(Effective)

Dimension: 435 x 290 x 185mm

Standard: ASTM D823

Power supply: 100-230V/ 50/60Hz

Power: <100W

Net Weight: 17kg

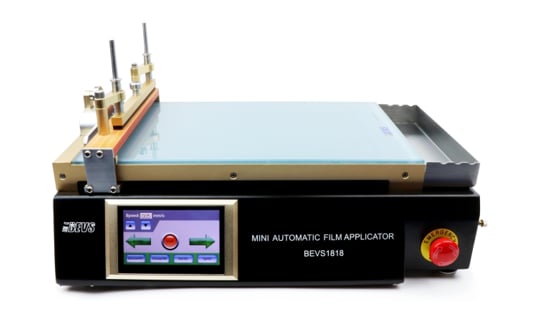

INTRODUCTION

The BEVS 1818 Mini Automatic Film Applicator is an ideal machine for preparing a wide variety of product samples including paint, varnish, cosmetics and glue on substrates. Its special structure ensures the application smooth without the ridges which happens during the film application.

FEATURES

Big touch screen, easy control

With weights which added to ensure pressure

Compatible with big range of film application tools

With anti-drip pan

With clamp to ensure substrate fixed firmly

Vacuum adjustable

Special design to minimize vibration

Two beds available, easy to change

ORDER INFORMATION

BEVS 1818G     Mini Automatic Film Applicator with glass bed

BEVS 1818V     Mini Automatic Film Applicator with vacuum bed, including an external pump

BEVS 1818GV  Mini Automatic Film Applicator with glass and vacuum bed, including an external pump

BEVS 1818H     Mini Automatic Film Applicator with heated vacuum bed, including an external pump

BEVS 1818S     Mini Automatic Film Applicator with glass bed (bed not changeable)
