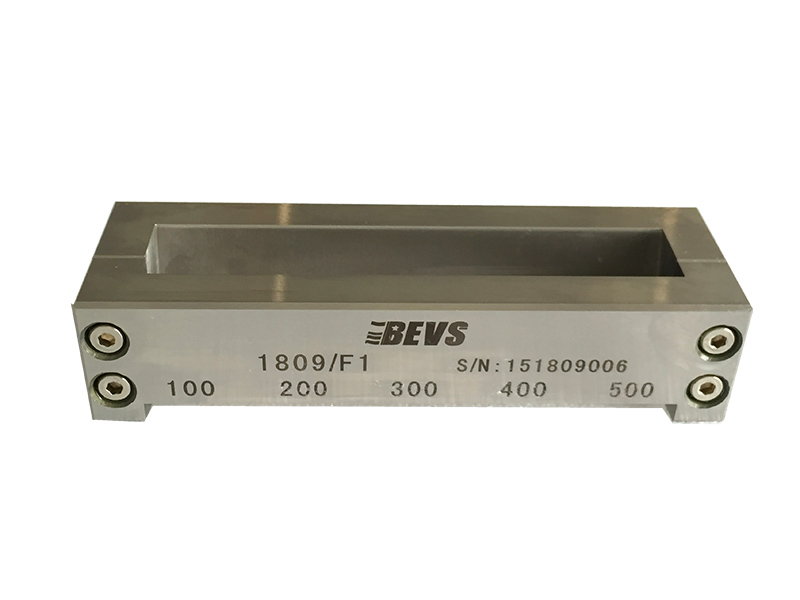

Bevs BEVS 1809/F1 Quadruplex Sagging Applicator (100-200-300-400-500μm)

High-grade stainless steel

10 different films incremented by 25 μm

Wet film width 6mm, spacing 1.5mm

Range: 100-200-300-400-500μm

Introduction:

The instrument is used for sag resistance evaluation to ensure a uniform film thickness by selecting suitable thickness, which is conducive to verticals, corners, holes, circular pieces of painting controlled. Viscosity,fineness,thickness are major factors in the impact of sagging.

Technical Specification:

Standard:

ASTM D4400, D373

Order Information:

BEVS 1809/1  Sagging Applicator

Range（μm）: 50-75-100-125-150-175-200-225-250-275

BEVS 1809/2  Sagging Applicator

Range（μm）: 250-275-300-325-350-375-400-425-450-475

BEVS 1809/3  Sagging Applicator

Range（μm）: 450-475-500-525-550-575-600-625-650-675

BEVS 1809/4  Sagging Applicator

Range（μm）: 650-675-700-725-750-775-800-825-850-875

BEVS 1809/5  Sagging Applicator

Range（μm）: 850-875-900-925-950-975-1000-1025-1050-1075

BEVS 1809/F1  Quadruplex Sagging Applicator

Range（μm）: 100-200-300-400-500

BEVS 1809/F2  Quadruplex Sagging Applicator

Range（μm）: 600-700-800-900-1000
