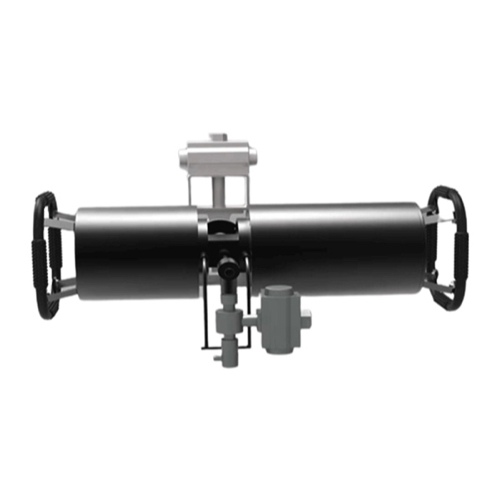

Bettersize BT-Online1 Online Particle Size Analyzer (0.1 - 1000 µm)

Measurement range: 0.1 - 1000 μm

Measurement principle: Mie scattering theory and Fraunhofer diffraction theory

Accuracy: ≤ 1% (D50 of certified reference material)

Lens protection: Dual air curtain

Pressure of carrier gas: 0.4 - 0.8 MPa

Airflow volume: ≥ 1000 L/min

Laser power: Semiconductor laser

Number of detector: 68

Carrier gas: Compressed air/inert gas

Communication protocol: TCP, Modbus RTU, 4 - 20 mA

Protection: IP65

Sample required per measurement: 2 - 20 g

Power: AC220 V, 50 / 60 Hz, 90 W

Dimension: 800 (L) x 280 (W) x 280 (H) mm (Main unit)

Weight: 21 kg (Main unit)
