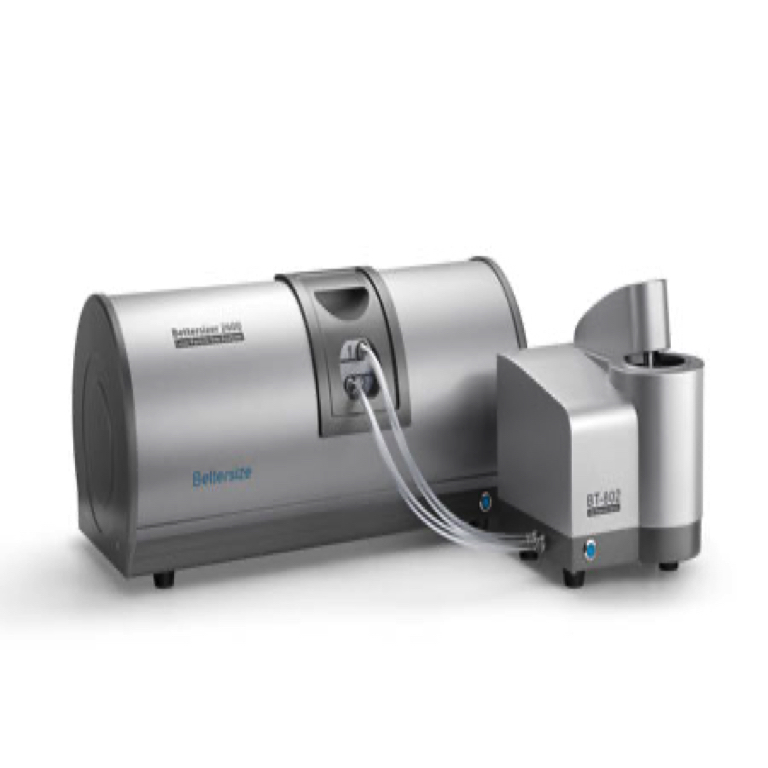

Bettersize 2600 Laser Particle Size Analyzer (0.02 - 2600 μm, 0.1 - 2600 μm)

Particle size distribution: Suspensions, emulsions, dry powders

General

Principle: Laser diffraction technology

Analysis: Mie scattering theory and Fraunhofer diffraction theory

Typical measurement time: Less than 10 seconds

Measurement performance

Measuring range:

0.02 - 2600 μm (wet)

0.1 - 2600 μm (dry)

Accuracy error: ≤ 0.5%

Repeatability: ≤ 0.5%

Number of size classes: 100 (user adjustable)

Feeding mode:

Automatic circulation or micro cuvette (wet)

Gas transportation (dry)

Special functions: SOP settings, refractive index measurement, sample ratio calculation

Main device

Optical system: Combined Fourier and inverse Fourier & Tilted sample cell

Laser: High-power optical fiber laser (10 mW / 635 nm)

Laser class: Class 1 laser product

Detector: 92 detectors (forward, lateral and backward arrangements)

Measuring angle: 0.016 - 165°

Wet dispersion module

Measurement method: One-click operation (automated measurement, cleaning, saving, printing, etc.)

Dispersion medium: Water or organic solvents (sample dependent)

Circulation speed: 500 - 2500 r / min

Ultrasonication: Dry burning prevention，50 W

Dry dispersion module

Dispersion medium: Air / Nitrogen / Noble gas

Air pressure: 0.1 - 0.8 MPa (Air compressor dependent)

Software

Conformity: 21 CFR Part 11, ISO 13320, USP <429>, CE

Reports: Customizable reporting

System parameters

Dimensions (L x W x H): 70.5 x 31.8 x 29.5 cm

Weight: 23 kg

Supply voltage: 100 / 240 V, 50 / 60 Hz

Computer configuration (recommended)

Computer interface: At least one high-speed USB 2.0 or USB 3.0 port required

Operating system: Windows 7 (32 bit and 64 bit) or higher

Hardware specification: Intel Core i5 Processor, 4GB RAM, 250GB HD, Wide screen monitor
