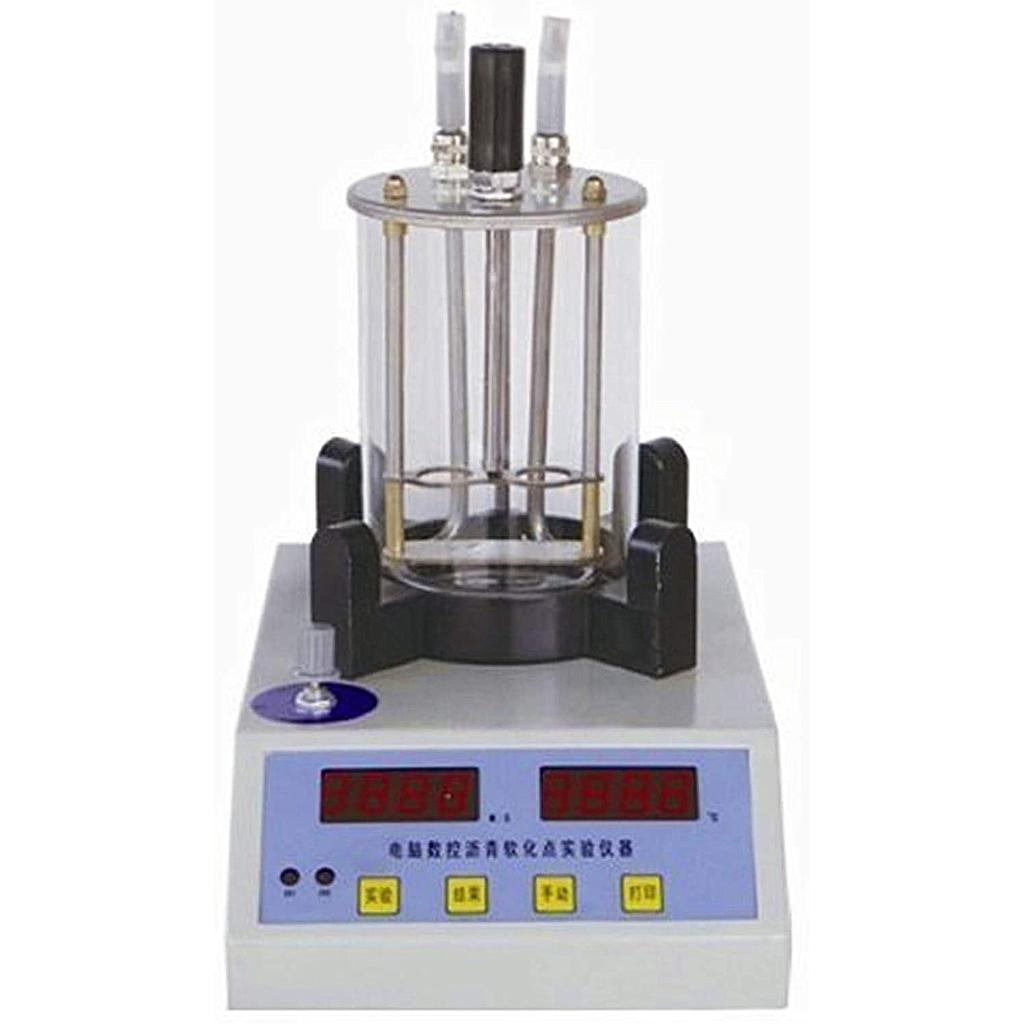

Better United SYD-2806F Asphalt full Auto Softening Point Tester

Temperature measurement range: 0-99℃

Test range: 0~-100℃

Rising heating rate: (5 ± 0.5℃ / min

Heating method: heating speed PID control and fuzzy logic algorithm, magnetic stirring

Test method: manual test or automatic detection.

6.Steel ball quality: 3.5 g ± 0.05 g

Ball diameter: 9.53 mm.

Ball sinking: 25.4 mm.

Rings: standard JTG E52-2011 procedures.

Timing range: 0-99m 99s

Temperature measuring accuracy: 0.2℃

Standards: GB/T4505, ASTMD36, T0606-2011.

Dimensions: 340 x230x640mm

Weight: 4.5 kg

Voltage: 220 v,Power: 600W

The environment temperature: 5 ~ 40℃

Environmental humidity:<85 percent
