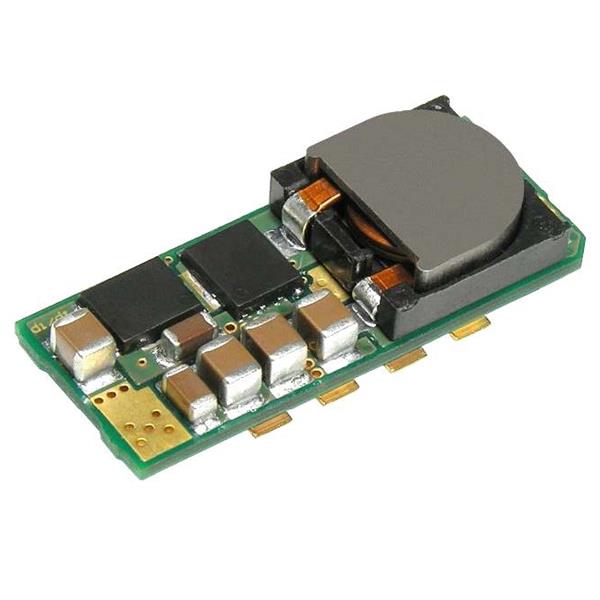

Bel Power Solutions YS05S16-DG Non-Isolated / PoL DC DC POWER SUPPLY

Width: 13.5 mm (0.531 in)

Height: 8 mm (0.315 in)

Length: 33 mm (1.299 in)

Industry: Industrial

Unit Weight: 6.120 g

Output Power: 58 W

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 16 A

Output Voltage-Channel 1: 752.5 mV to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
