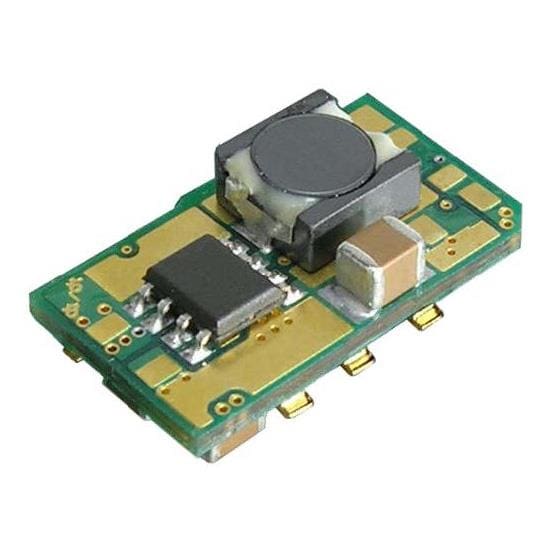

Bel Power Solutions YM05S05-G Non-Isolated / PoL 0.7525-3.63Vout 5A 3-5.5VIn

Width: 11.43 mm (0.45 in)

Height: 6.27 mm (0.247 in)

Length: 20.32 mm (0.8 in)

Industry: Industrial

Output Type: Regulated

Unit Weight: 6.196 g

Output Power: 14 W

REACH - SVHC: Details

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 500 mV to 2.75 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
