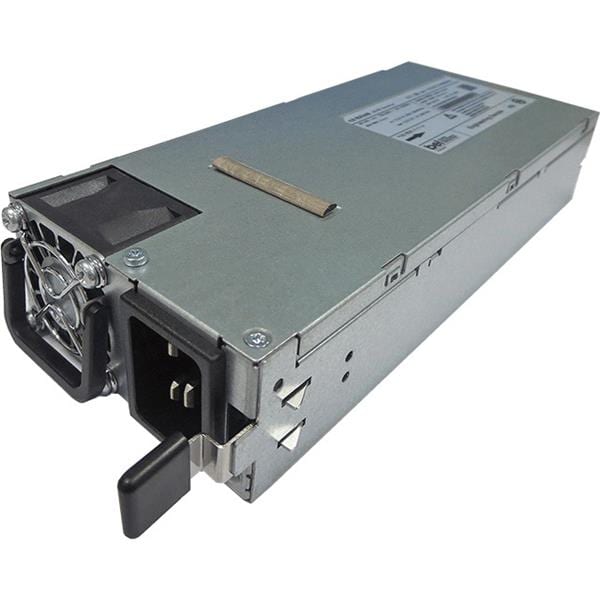

Bel Power Solutions TET2500-12-086NA Rackmount Power Supplies AC DC Front End Normal Airflow

Width: 86 mm

Height: 40 mm

Length: 195 mm

Industry: Industrial

Unit Weight: 1.2 kg

Output Power: 2.5 kW

Input Voltage: 90 VAC to 264 VAC, 180 VDC to 300 VDC

Mounting Style: Rack

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 203 A

Output Voltage-Channel 1: 12 V

Operating Temperature Range: 0 C to + 40 C

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: 0 C
