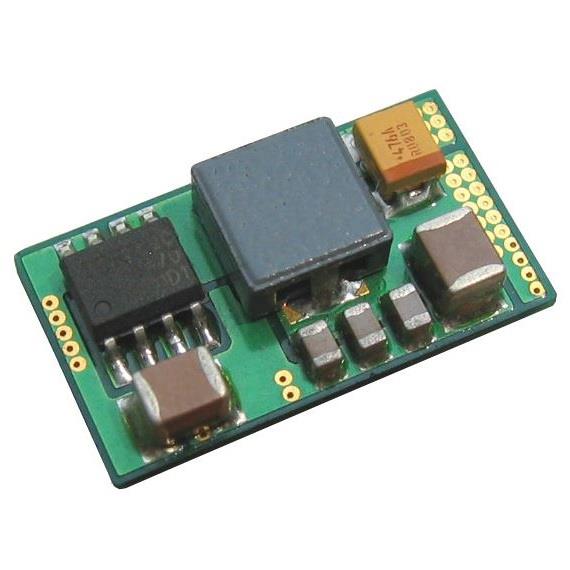

Bel Power Solutions SRBA-06A2A0G Non-Isolated / PoL Non-Isolated DC-DC Converter 30W

Width: 11.42 mm (0.45 in)

Height: 6.4 mm (0.252 in)

Length: 20.32 mm (0.8 in)

Industry: Industrial

Unit Weight: 3 g

Output Power: 33 W

REACH - SVHC: Details

Mounting Style: SMD/SMT

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 14 V

Input Voltage - Min: 8.3 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 6 A

Output Voltage-Channel 1: 750 mV to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
