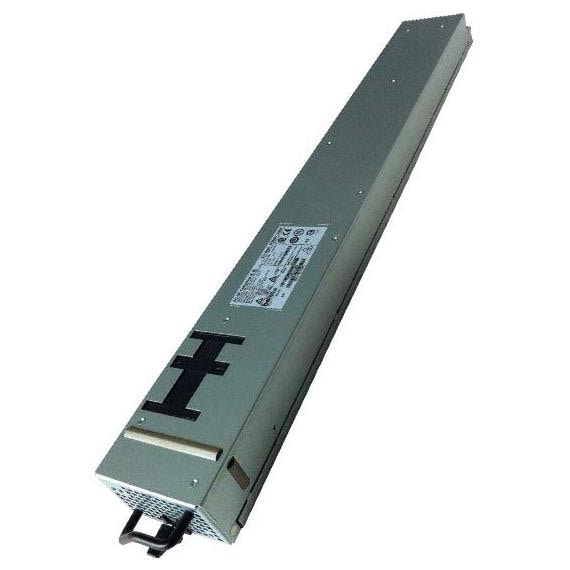

Bel Power Solutions PFE3600-12-069RA Front End Power Supplies Front End AC-DC 3600W 12V

Width: 69 mm

Height: 42 mm

Length: 555 mm

Industry: Industrial

Unit Weight: 2.6 kg

Output Power: 3.6 kW

Input Voltage: 100 VAC to 277 VAC, 240 VDC to 380 VDC

Mounting Style: Rack

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 293 A

Output Voltage-Channel 1: 12.3 V

Operating Temperature Range: 0 C to + 45 C

Maximum Operating Temperature: + 45 C

Minimum Operating Temperature: 0 C
