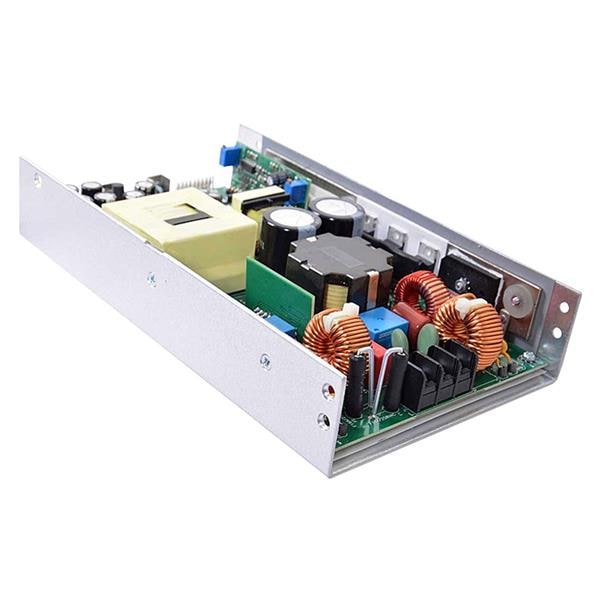

Bel Power Solutions MBC800-1T24 AC-DC Converter AC-DC Power Supply Med Open Frame 800 W

Width: 216 mm (8.504 in)

Height: 41 mm (1.614 in)

Length: 127 mm (5 in)

Industry: Medical

Approvals: ANSI/AAMI 60601-1, EN/IEC60601-1

Compliance: ANSI/AAMI 60601-1, EN/IEC 60601-1

Efficiency: 88 %

Unit Weight: 1.1 kg

Output Power: 800 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 390 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.245 kVAC

Number of Outputs: 1 Output

Power - Convection: 800 W

Power - Forced Air: 800 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 33.33 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
