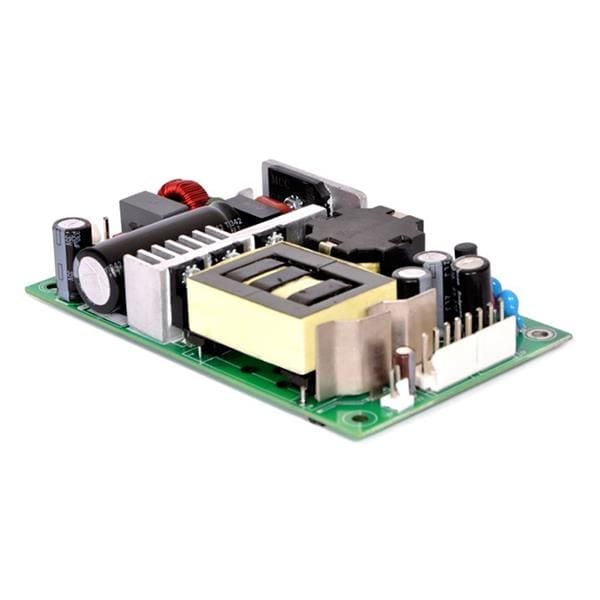

Bel Power Solutions MBC350-1T24L Switching Supplies 350W 24V MEDICAL SCREW TERMINAL

Width: 76.2 mm (3 in)

Height: 25.4 mm (1 in)

Length: 127 mm (5 in)

Industry: Medical

Unit Weight: 300 g

Output Power: 200 W, 350 W

Input Voltage: 85 VAC to 264 VAC, 390 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 200 W

Power - Forced Air: 350 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 8.33 A, 14.6 A

Output Voltage-Channel 1: 24 VDC
