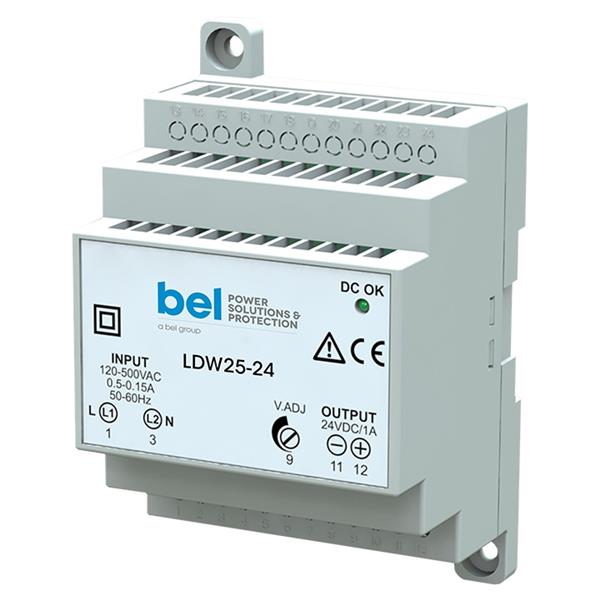

Bel Power Solutions LDW25-24S Switching Supplies DC/DC-DCIN

Width: 61.5 mm (2.421 in)

Height: 114.2 mm (4.496 in)

Length: 72 mm (2.835 in)

Industry: Industrial

Input Type: 1-Phase / 2-Phase

Output Power: 25 W

Input Voltage: 120 VAC to 500 VAC, 150 VDC to 725 VDC

Mounting Style: DIN Rail Mount

Isolation Voltage: 4.2 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 1 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
