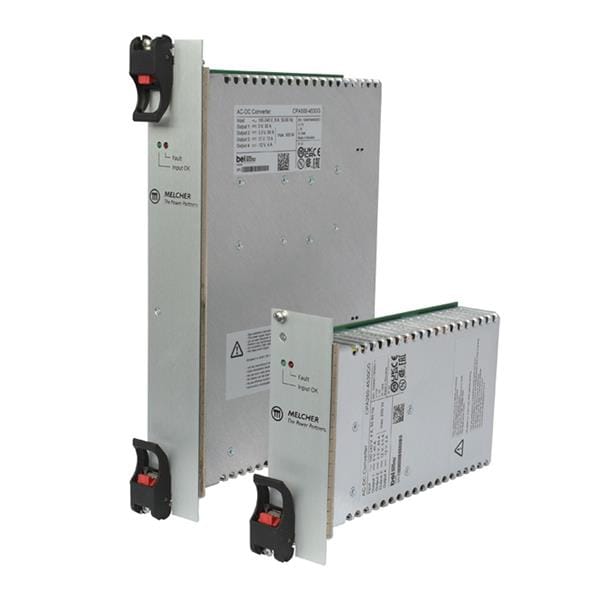

Bel Power Solutions CPA500-4530G Switching Supplies 90-264Vin 250W 5V40A 3.3V50A /12V8A

Width: 162.5 mm (6.398 in)

Height: 40.6 mm (1.598 in)

Length: 223.4 mm (8.795 in)

Industry: Industrial

Unit Weight: 2 kg

Output Power: 500 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Number of Outputs: 4 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 40 A

Output Current-Channel 2: 50 A

Output Current-Channel 3: 8 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 3.3 VDC

Output Voltage-Channel 3: 12 VDC
