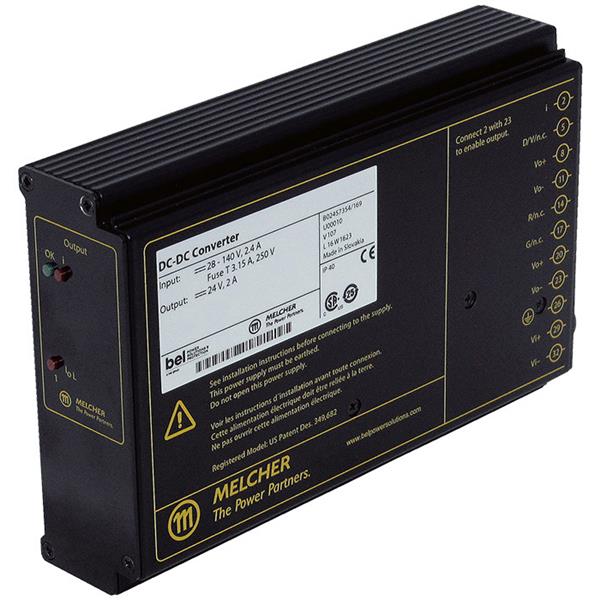

Bel Power Solutions CM3020-9G Isolated POWER SUPPLY

Width: 111 mm

Height: 38.7 mm

Length: 169 mm

Industry: Industrial

Input Voltage: 28 VDC to 140 VDC

Mounting Style: Chassis

Number of Outputs: 3 Output

Input Voltage - Max: 140 V

Input Voltage - Min: 28 V

Output Current-Channel 1: 5 A

Output Current-Channel 2: 700 mA

Output Current-Channel 3: 700 mA

Output Voltage-Channel 1: 5.1 V

Output Voltage-Channel 2: 12 V

Output Voltage-Channel 3: 12 V

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 40 C
