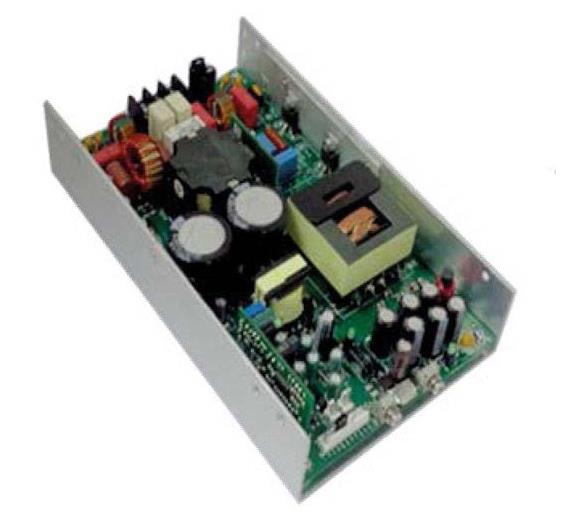

Bel Power Solutions ACC600-1T12 Switching Supplies ACDC;IN 100to240V OUT 12V;50A;600W

Width: 127 mm

Height: 41 mm

Length: 216 mm

Industry: Medical, Industrial

Efficiency: 88 %

Unit Weight: 1.1 kg

Output Power: 600 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 390 VDC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 25 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: - 40 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
