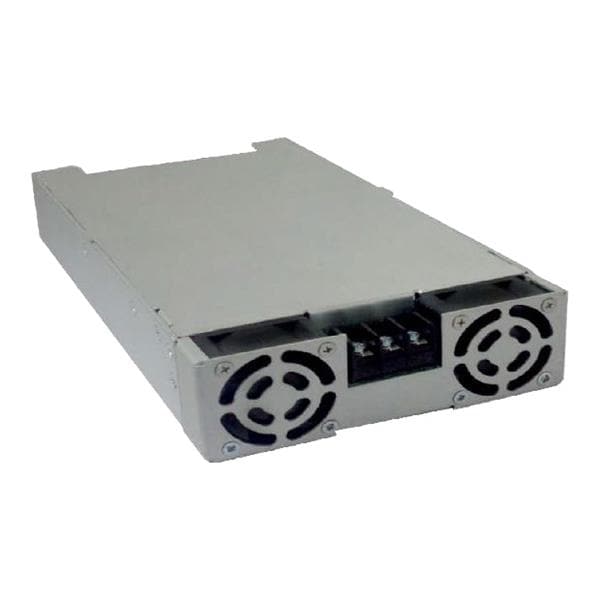

Bel Power Solutions ABE1000-1T24 Switching Supplies AC-DC;IN 100to240V OUT 24V;41.66A;1000W

Width: 127 mm (5 in)

Height: 41 mm (1.614 in)

Length: 240 mm (9.449 in)

Industry: Medical, Industrial

Efficiency: 88 %

Unit Weight: 1.3 kg

Output Power: 1 kW

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 390 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Isolation Voltage: 4.24 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 41.66 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 40 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
