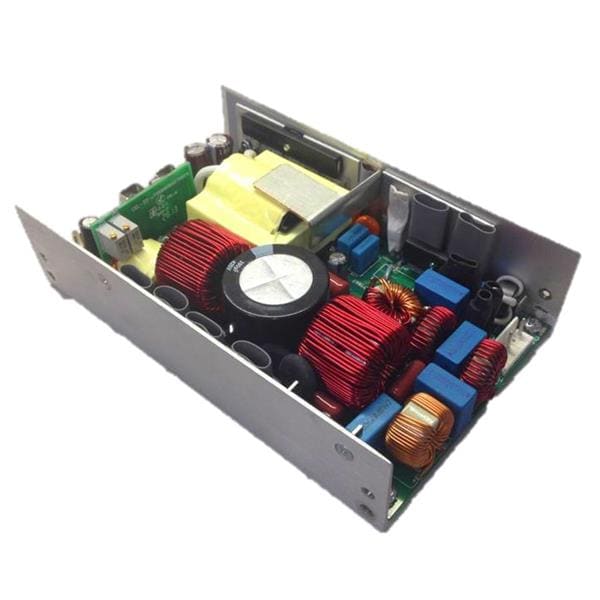

Bel Power Solutions ABC450-1T30G Switching Supplies 450W 30 Vdc output

Width: 101.6 mm (4 in)

Height: 41 mm (1.614 in)

Length: 165 mm (6.496 in)

Industry: Industrial

Approvals: EN60950-1, UL60950-1

Compliance: EN60950-1, UL60950-1

Unit Weight: 1 kg

Output Power: 450 W

Input Voltage: 90 VAC to 264 VAC, 120 VDC to 390 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.242 kVDC

Number of Outputs: 1 Output

Power - Convection: 300 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 30 VDC
