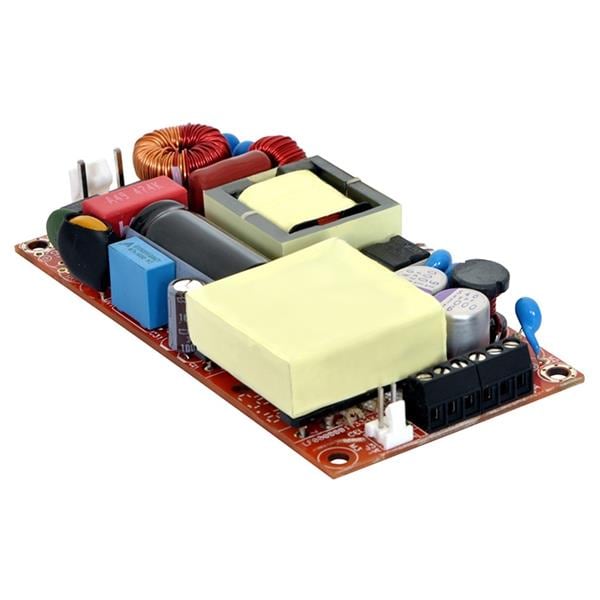

Bel Power Solutions ABC180-1058L High Efficiency & High Power 180W 100-240Vin 58Vout 3.10A HEADER

Width: 50.8 mm (2 in)

Height: 19.05 mm (0.75 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL60950-1

Compliance: EN60950-1, IEC60950-1, UL60950-1

Efficiency: 92 %

Unit Weight: 200 g

Output Power: 180 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3.1 A

Output Voltage-Channel 1: 58 VDC
