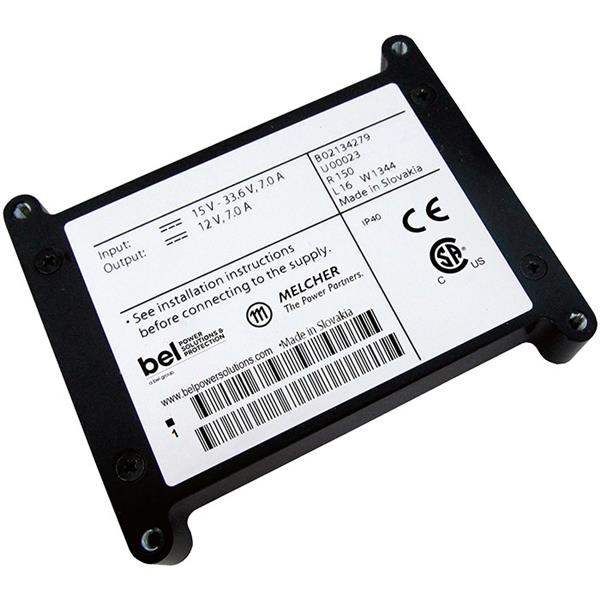

Bel Power Solutions 24IMX70-24-24-0ZG Isolated DC-DC

Width: 47.8 mm (1.882 in)

Height: 9.75 mm (0.384 in)

Length: 72.7 mm (2.862 in)

Industry: Industrial

Dimensions: 72.7 mm x 47.8 mm x 9.75 mm

Output Power: 70 W

Input Voltage: 15 V to 33.6 V

Mounting Style: Through Hole

Isolation Voltage: 2.1 kV

Number of Outputs: 2 Output

Input Voltage - Max: 33.6 V

Input Voltage - Min: 15 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 1.3 A

Output Current-Channel 2: 1.3 A

Output Voltage-Channel 1: 24 V

Output Voltage-Channel 2: 24 V

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
