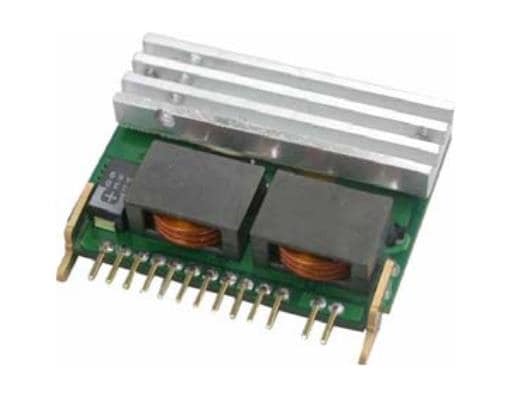

Bel Power Solutions 0RP2-40E1A0G Non-Isolated / PoL Non-Isolated DC-DC Converter 200W

Width: 28 mm (1.102 in)

Height: 9.58 mm (0.377 in)

Length: 36.8 mm (1.449 in)

Industry: Industrial

Unit Weight: 19 g

Output Power: 200 W

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 13.8 V

Input Voltage - Min: 5 V

Input Voltage, Nominal: 9 V

Output Current-Channel 1: 40 A

Output Voltage-Channel 1: 600 mV to 5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
