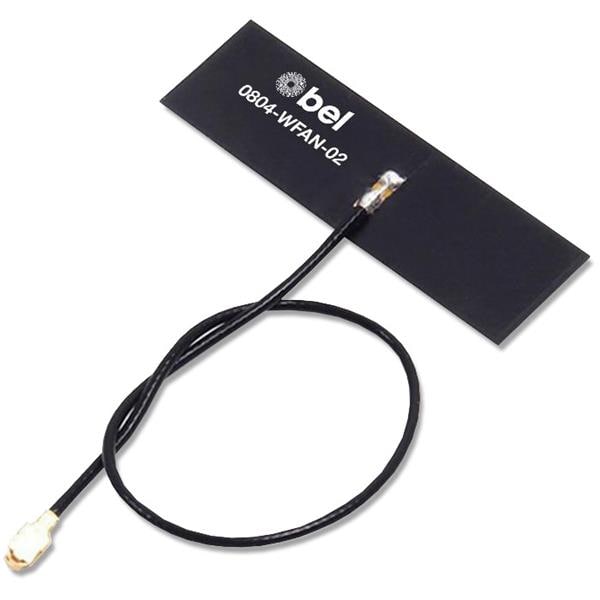

Bel Power Solutions 0804-WFAN-02 Passive Antenna 5G WiFi PCB Attenna
Model0804-WFAN-02
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 2 dBi, 2 dBi, 3 dBi
VSWR: 1.9, 1.9
Style: T-Bar Flex
Width: 8 mm
Length: 40 mm
Impedance: 50 Ohms
Cable Type: RF 1.13 mm
Application: WiFi
Cable Length: 48 mm
Polarization: Linear
Mounting Style: Adhesive Mount
Number of Bands: 2 Band
Center Frequency: 2.4 GHz, 5 GHz
Mechanical Style: PCB Trace
Maximum Frequency: 5.875 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: IPEX
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 40 C
