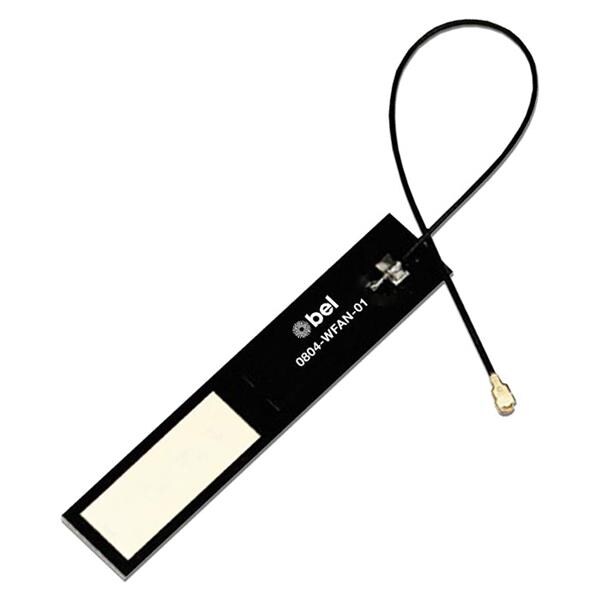

Bel Power Solutions 0804-WFAN-01 Passive Antenna 4G WiFi PCB Attenna

Gain: 3 dBi, 3 dBi

VSWR: 1.9, 1.9

Style: I-Bar Flex

Width: 13 mm

Length: 66 mm

Impedance: 50 Ohms

Cable Type: RF 1.13 mm

Application: Multiband

Cable Length: 150 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 832 MHz, 1.61 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.7 GHz

Minimum Frequency: 704 MHz

Termination Style: Connector

Antenna Connector Type: IPEX

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE)
