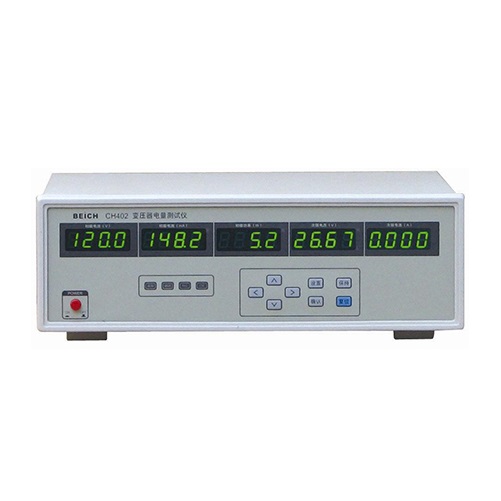

Beich CH400 Transformer Power Tester (300V/2A; 100V/20A; 0.5%; 7-window LED)

Measurement parameters:

- Primary voltage/current/power/power factor;

- Secondary voltage/current/power

Range:

- Primary voltage 300V/current 2A/0.2A;

- Secondary voltage 100v/current 20A/2A

Basic accuracy: 0.5%

Display mode: 7-window LED

Main functions: Parameter setup, high&low limits secondary voltage/current/D

Built-in electric overload: No

Interface: PRINTER

Dimensions: 350mm×110mm×340mm (W×H×D)

Power requirement: 198-242VAC 47.5-52.5Hz

Working temperature & humidity: 0℃~40℃, ≤90%RH

Power consumption: ≤30VA

Weight: Approx.4.5kg
