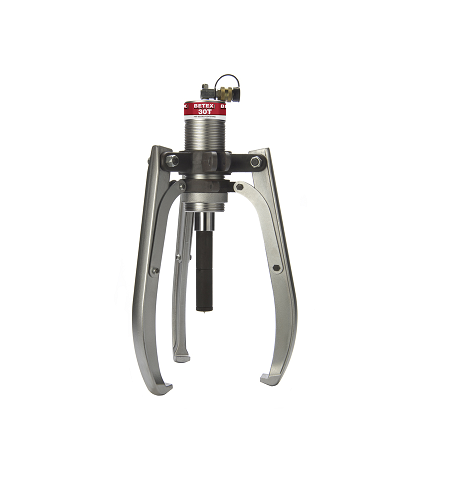

BEGA HXP303 Hydraulic puller (30ton, 680mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Art.no: 797600
Capacity: 30 ton
Shaft lenght Max: 465mm
Spread Max: 680 mm
Stroke: 111 mm
2/3-arm combination puller,integrated pump and cylinder!
Weight Kg: 34.0
Pump: Option AHP702 Set
BETEX HXP hydraulicself-centering pullers2/3 ARM PULLER with seperate 2-stage hand pump, in practical case.
Safe and easy dismounting of bearings, couplings, rings etc.
Separate 2-stage hand pump available.(option)
Practical:
Self-centering, easy to convert, 2-arm or 3-arm puller.
The arms slide inwards or outwards simultaneously.
Safe:
Arms can never deflect!
Economical:
2/3-arm combination puller, 2 pullers for the price of one.
TIP!
Use in combination with:
- Hand- and footpumpsets
Strong!
The greater the pulling force, the tighter the jaws grip the object concerned! The arms cannot bend or deflect.
Advantages of self-centering pullers:
· Prevent damage to shaft and object being pulled.
· Work efficient and save time.
· Accessory sets are available for the 8 and 12 ton pullers.
· Supplied in handy carrying case.
|
Type
|
Capacity
|
Shaft length
|
Spread
|
Stroke
|
use in combination with pump set
|
|
HXP83
|
8 ton
|
280 mm
|
450 mm
|
85 mm
|
AHP701 Set
|
|
HXP123
|
12 ton
|
305 mm
|
485 mm
|
85 mm
|
AHP701 Set
|
|
HXP203
|
20 ton
|
365 mm
|
570 mm
|
111 mm
|
AHP702 Set
|
|
HXP303
|
30 ton
|
465 mm
|
680 mm
|
111 mm
|
AHP702 Set
|
|
HXP503
|
50 ton
|
455 mm
|
860 mm
|
330 mm
|
AHP703 Set
|
