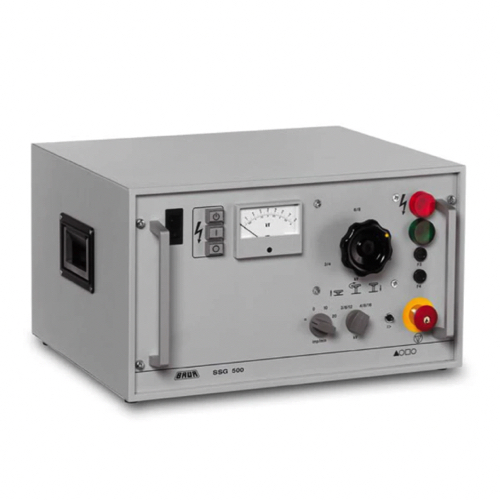

BAUR SSG 500 Surge Voltage Generator (512 J, 3 – 16 kV)

Output voltage:

Max. DC voltage: 16 kV

Surge voltage: 4 / 8 / 16 kV

Switchable to: 3 / 6 / 12 kV (56% of the surge energy)

Surge energy:

512 J @ 4 / 8 / 16 kV

288 J @ 3 / 6 / 12 kV

Max. output current (in DC mode):

Depending upon the position of the step selector switch:

DC 480 mA @ 4 kV position

DC 240 mA @ 8 kV position

DC 120 mA @ 16 kV position

Surge sequence: 10 or 20 pulses/min

Display range of the voltmeter:

0 – 4 kV

0 – 8 kV

0 – 16 kV

Accuracy of the voltmeter: 1.5%

General:

Power supply: 220 – 230 V, 50/60 Hz

Options:

110 – 120 V, 50/60 Hz (with external auto transformer)

240 V, 50/60 Hz (with conversion kit for mains supply)

Max. power consumption: 1,500 VA (in the event of short circuit)

Ambient temperature (operational): -10°C to +50°C

Storage temperature: -20°C to +60°C

Dimensions (W x H x D): Approx. 500 x 290 x 390 mm

Weight: Approx. 48 kg

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery:

BAUR SSG 500 surge voltage generator, inc. 5 m HV connection cable

Earth cable, 3 m, with earth terminal

Mains supply cord, 2.5 m

User manual
