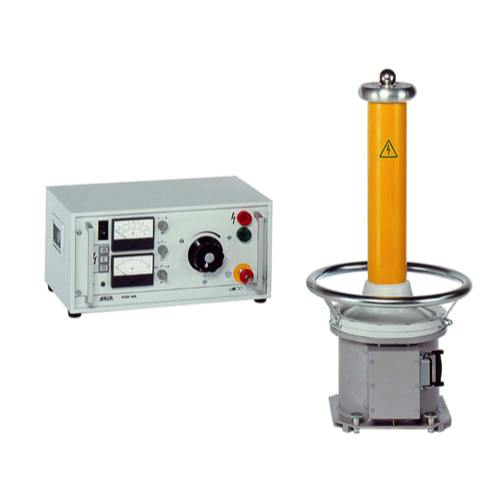

BAUR PGK 70/2,5 HB AC/DC HV Test Set (50 Hz. 70 kV, 50 mA)

Testing

Output voltage:

AC: 0 – 55 kVrms (at constant input voltage of 230 V)

DC: 0 to ±70 kV

Output current (continuous):

AC: 50 mArms

DC: ±20 mA

Short-circuit current:

AC: 117 mArms

DC: ±84 mA

Accuracy

Voltmeter (kV): 2.5%

Ammeter (mA): 2.5%

General

Power supply: 200 – 260 V, 50/60 Hz

Option: 100 – 130 V, 50/60 Hz (with external auto transformer)

Power consumption: 3,200 VA

In short-circuit: 6,500 VA

Ambient temperature (operational): 0°C to +45°C

Storage temperature: -20°C to +60°C

Relative humidity: Non-condensing

Dimensions

Operating unit (W x H x D): Approx. 506 x 258 x 319 mm, (19“, 5 RU)

HV unit (Height / Diameter): Approx. 1,126 mm / Ø ca. 473 mm

Weight

Operating unit: Approx. 22 kg

HV unit: Approx. 93 kg

Safety and EMC

CE-compliant in accordance with: Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

▪ PGK 70/2,5 HB AC/DC HV test set

▪ GDR 80-500 discharge and earth rod

▪ Connection cable, 5 m, for connecting the HV unit to the operating unit

▪ HV connection cable, 2.5 m, with connection clip

▪ Rectifier rod for DC voltage operation, screwed into the HV unit

▪ Resistance rod for AC voltage operation

▪ Wrench for changing the rectifier and resistance rod

▪ Earth cable, 3 m, with earth terminal

▪ Mains supply cord, 2.5 m

▪ User manual
