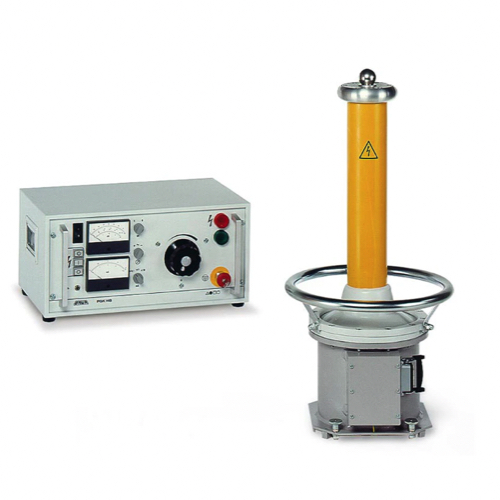

BAUR PGK 260 HB AC/DC HV Test Set (50 Hz. 260 kV, 9 mA)

Technical Data:

Testing:

Output voltage:

DC: 0 to ±260 kV

Option AC: 0 – 190 kVrms

Output current (continuous):

DC: ±4 mA

Option AC: 9 mArms

Short-circuit current:

DC: ±20 mA

Option AC: 20 mArms

Accuracy:

Voltmeter (kV): 2.5%

Ammeter (mA): 2.5%

General:

Power supply:

200 – 260 V, 50/60 Hz

Option: 100 – 130 V, 50/60 Hz (with external auto transformer)

Power consumption:

Normal: 2,600 VA

In short-circuit: 5,000 VA

Ambient temperature (operational): 0°C to +45°C

Storage temperature: -20°C to +60°C

Relative humidity: Non-condensing

Dimensions:

Operating unit (W x H x D): Approx. 506 x 258 x 319 mm, (19“, 5 RU)

HV unit (Height / Diameter): Approx. 2,055 mm / Ø ca. 1,265 mm

Weight:

Operating unit: Approx. 19 kg

HV unit: Approx. 280 kg

Safety and EMC:

CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

▪ PGK 260 HB AC/DC HV test set

▪ GDR 260-1750 discharge and earth rod

▪ Connection cable, 5 m, for connecting the HV unit to the operating unit

▪ HV connection cable, 2.5 m, with connection clip

▪ Rectifier rod for DC voltage operation, screwed into the HV unit

▪ Wrench for changing the rectifier and resistance rod

▪ Earth cable, 3 m, with earth terminal

▪ Mains supply cord, 2.5 m

▪ User manual
