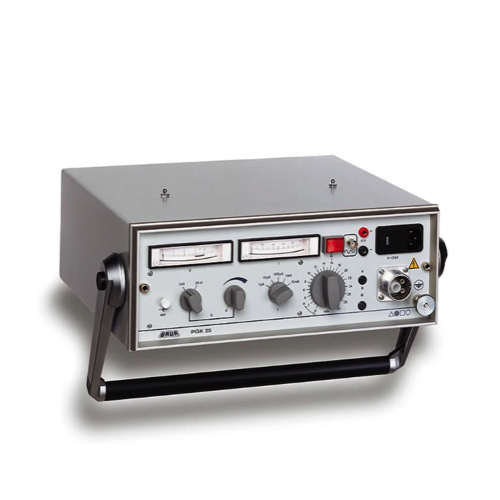

BAUR PGK 25 DC High-Voltage Test Device (25 kV)

Testing:

DC voltage (negative):

Range I: 0 – 5 kV

Range II: 0 – 25 kV

Output current (negative): 1 mA

Short-circuit current (negative): 3 mA

Voltage measuring range:

Range I: 0 – 5 kV

Range II: 0 – 25 kV

Current measuring range: 50 nA to 1 µA / 10 µA / 100 µA / 1 mA / 10 mA

Max. discharge energy:

For 1 discharge/10 min: 3,000 J, 9.6 µF / 25 kV

For 1 discharge/20 min: 5,000 J, 16 µF / 25 kV

General:

Power supply:

Mains voltage: 110/120 V, 220/230 V, 240 V, 50/60 Hz

Integrated rechargeable battery: Lead-acid battery DC 12 V, 6.5 Ah (maintenance free)

External supply: DC 12 V

Power consumption: 110 VA

Ambient temperature (operational): 0°C to +45°C

Storage temperature: -20°C to +60°C

Relative humidity: Non-condensing

Dimensions (W x H x D): Approx. 415 x 140 x 360 mm

Weight: Approx. 16.5 kg

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Integrated rechargeable battery:

Battery type: Lead-acid battery DC 12 V, 6.5 Ah (maintenance free)

Battery life: Approx. 30 min at 2/3 load

Charging time: Approx. 24 h

Standard delivery

▪ BAUR PGK 25 DC HV tester

▪ Leather bag for HV connection cable

▪ HV connection cable, 2.6 m

▪ Earth cable, 3 m, with earth terminal

▪ Mains supply cord, 2.5 m

▪ User manual
