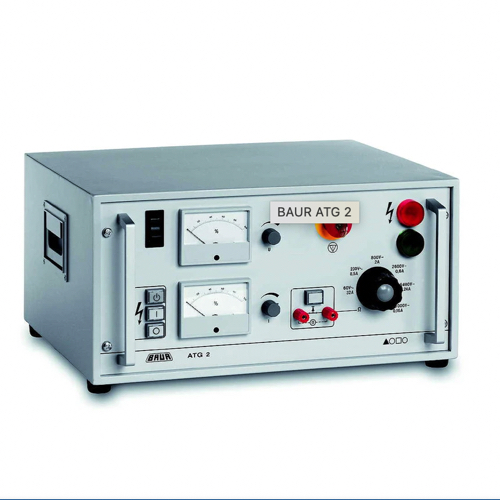

BAUR ATG 2 Burn Down Transformer (200 – 253 V, 50/60 Hz)

Technical data

Power supply: 200 – 253 V, 50/60 Hz

Option: 100 – 130 V, 50/60 Hz with external autotransformer

Max. power consumption: 2300 VA (in short-circuit)

Output current AC: 32 Arms at AC 60 V/ 8.5 Arms at AC 230 V

Output current DC:

2.0 A at DC 800 V

0.6 A at DC 2.6 kV

0.24 A at DC 6.4 kV

0.16 A at DC 10 kV

Load capacity: Max. 10 µF

Output voltage DC: Max. 10 kV

Internal discharging resistance: 100 kOhm

Ambient temperature (operational):-20 °C to +55 °C

Storage temperature: -30 °C to +70 °C

Dimensions (W x H x D): 502 x 255 x 390 mm

Weight Approx.: 41 kg

Standard delivery includes

▪ BAUR burn down transformer ATG 2, including:

– HV connection cable, 3 m, fix mounted

– Mains supply cord, 2.5 m

– Earth cable, 3 m, with earthing clamp

– User manual
