Basler raL4096-80km Line Scan Cameras (4k; 80 kHz)

Interface: Camera Link

Resolution: 4k

Mono/Color: Mono

Line Rate: 80 kHz

Pixel Bit Depth: 8/10/12 bits

Synchronization: software trigger/ hardware trigger/ free-run

Exposure Control: trigger width or timed

Digital Input: 3 via CL (max. 4 I/O\

Digital Output: 2 via CL (max. 4 I/O\

Power Supply: PoCL or 12-24 VDC

Power Requirements (typical): 4 W

Housing Size (L x W x H): 34 mm x 56 mm x 62 mm

Weight (typical): 210g

Lens Mount: C-mount/ M42 x 1/ M42 x 0.75/ F-mount/ M58 x 0.75

Camera Link Clock: 32.5/48/65/83.5 MHz

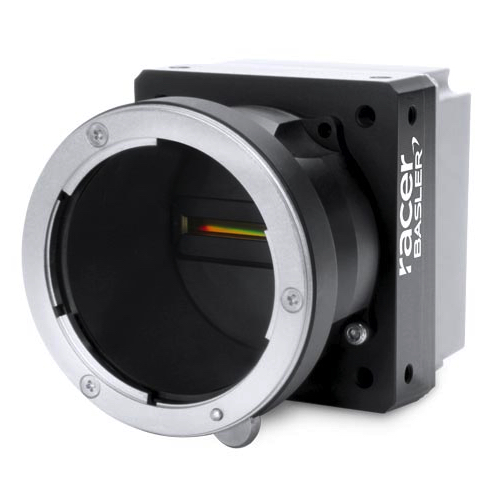

The Basler racer raL4096-80km Camera Link camera with the Awaiba DR-4k-7 CMOS sensor delivers 80 kHz at 4k resolution.

If you wish to attach a lens to the camera, you must order a lens mount adapter separately as an accessory. A lens mount adapter is not provided with the camera.
