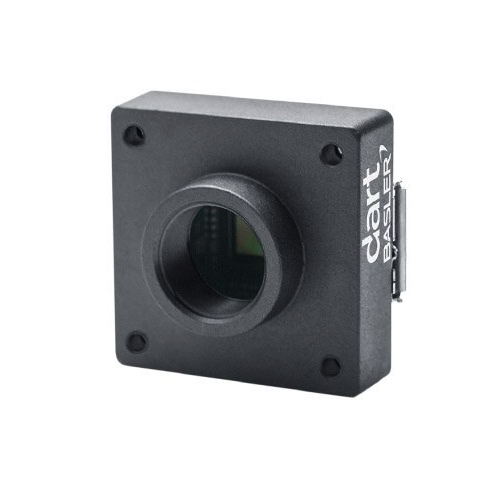

Basler daA1280-54uc (S-Mount) Area Scan Camera (1.2 MP; onsemi AR0134; S-mount, Color)

Resolution (H x V Pixels): 1280 x 960

Resolution: 1.2 MP

Sensor Type: onsemi AR0134 / Progressive scan CMOS / Global shutter

Sensor Format: 1/3 inch

Effective Sensor Diagonal: 6 mm

Pixel Size (H x V): 3.75 x 3.75 μm

Frame Rate (at Default Settings): 54 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Programmable via the camera API

Camera Power Requirements: ≈1.3 W (typical) @ 5 VDC

I/O Lines: 2 general purpose I/O (GPIO) lines

Lens Mount: S-mount

Size (L x W x H): S-mount models: 20 x 29 x 29 mm

Weight: S-mount models: <15 g

Software: Basler pylon Camera Software Suite (version 4.2 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android

The Basler daA1280-54uc (S-Mount) USB 3.0 camera with the onsemi AR0134 CMOS sensor delivers 54 frames per second at 1.2 MP resolution. This model comes with a S-mount.
