Resolution (H x V Pixels): 1280 x 960
Resolution: 1.2 MP
Sensor Type: onsemi AR0134 / Progressive scan CMOS / Global shutter
Sensor Format: 1/3 inch
Effective Sensor Diagonal: 6 mm
Pixel Size (H x V): 3.75 x 3.75 μm
Frame Rate (at Default Settings): 54 fps
Mono / Color: Color
Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Synchronization: Via hardware trigger / Via software trigger / Via free run
Exposure Time Control: Programmable via the camera API
Camera Power Requirements: ≈1.3 W (typical) @ 5 VDC
I/O Lines: 2 general purpose I/O (GPIO) lines
Lens Mount: CS-mount
Size (L x W x H): CS-mount models: 20 x 29 x 29 mm
Weight: CS-mount models: <15 g

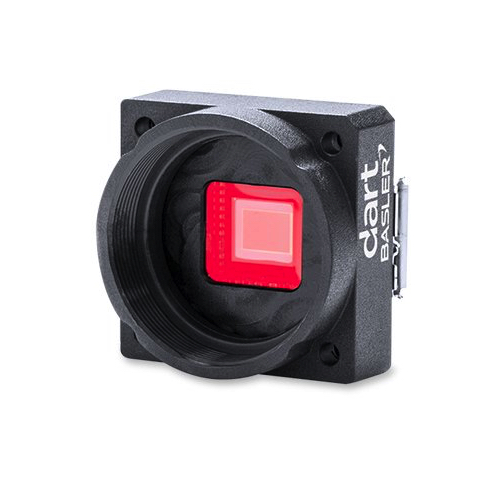

The Basler daA1280-54uc (CS-Mount) USB 3.0 camera with the onsemi AR0134 CMOS sensor delivers 54 frames per second at 1.2 MP resolution. This model comes with a CS-mount.
