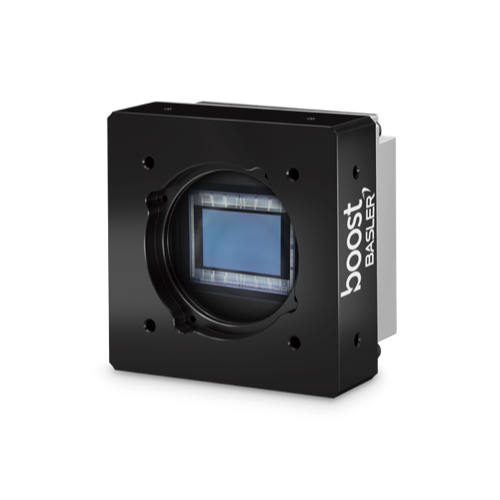

Basler Boost boA4500-45cc Area Scan Camera (4448 x 4448Pixels, 20 MP; onsemi / XGS 20000 Color)

Resolution (H x V Pixels): 4448 x 4448

Resolution: 20 MP

Sensor Type: onsemi / XGS 20000 Color / Progressive scan CMOS / Global shutter

Sensor Format: 1.3 inch

Effective Sensor Diagonal: 20.4 mm

Pixel Size (H x V): 3.2 x 3.2 µm

Frame Rate (at Default Settings): 46 fps

Mono / Color: Color

Image Data Interface: CoaXPress (2.5–12.5 Gbps)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements:

Power over CoaXPress (PoCXP): 24 VDC supplied via the camera's Micro-BNC (HD‑BNC) connector

18.6–26 VDC supplied via I/O connector

≈10.4 W (typical) @ 24 VDC

I/O Lines: 1 opto-coupled input line 2 general purpose I/O (GPIO) lines

Lens Mount: Universal camera front, suitable for the following lens mounts: F-mount, M42x0.75-mount (FBD 16 mm), M42x1-mount (FBD 16 mm), M42x1-mount (FBD 45.56 mm)

Lens mounts are not included with the camera and must be ordered separately as accessories. To find the right lens mount, visit the Basler website. If you purchase the Basler CXP-12 Evaluation Kit boost, an F-mount is included.

Size (L x W x H): 50 x 80 x 80 mm

Weight: 524 g

Software: Basler pylon Windows (version 6.3 or higher) Basler pylon Linux x86 (64 bit) (version 6.3 or higher)

The Basler boA4500-45cc CoaXPress camera with the onsemi XGS 20000 CMOS sensor delivers 45 frames per second at 20 MP resolution.

The boost series is available with different lens mounts (F-mount and M42-mount). These must be purchased separately for the camera.
