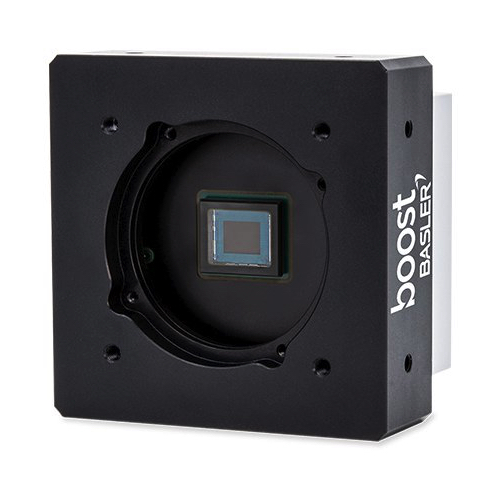

Basler boA2448-250cm Area Scan Camera (2464 x 2064 pixel; Sony IMX537-AAMJ-C)

Resolution (H x V Pixels): 2464 x 2064

Resolution: 5 MP

Sensor Type: Sony IMX537-AAMJ-C / Progressive scan CMOS / Global shutter

Sensor Format: 1/1.8 inch

Effective Sensor Diagonal: 8.8 mm

Pixel Size (H x V): 2.74 x 2.74 µm

Mono / Color: Mono

Image Data Interface: CoaXPress, 2x CXP-12 (2.5–12.5 Gbps per channel)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: Power over CoaXPress (PoCXP): 24 VDC supplied via the camera\

I/O Lines: 1 opto-coupled input line 2 general purpose I/O (GPIO) lines

Lens Mount: Universal camera front, suitable for the following lens mounts: C-mount, F-mount, M42x0.75-mount (FBD 16 mm), M42x1-mount (FBD 16 mm), M42x1-mount (FBD 45.56 mm))

Lens mounts are not included with the camera and must be ordered separately as accessories.

Size (L x W x H): 45 x 80 x 80 mm

Weight: 442 g

The Basler CoaXPress 2.0 boA2448-250cm camera with the Sony IMX537 CMOS sensor delivers 250 frames per second with a 5 MP resolution.

The boost series is available with different lens mounts (C-mount, F-mount and M42-mount). These must be purchased separately for the camera.
