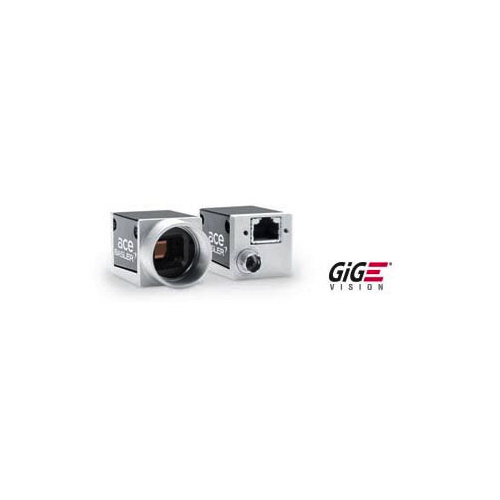

Basler acA800-200gc Area Scan Camera (832 x 632 px; 800 x 600 px; onsemi / PYTHON NOIP1SE0500A)

Resolution (H x V Pixels): 832 x 632 (full resolution) / 800 x 600 (default resolution) / You can change the resolution by changing the image ROI.

Resolution: CCIR

Sensor Type: onsemi / PYTHON NOIP1SE0500A / Progressive scan CMOS / Global shutter

Sensor Format: 1/3.6 inch

Effective Sensor Diagonal: 4.8 mm

Pixel Size (H x V): 4.8 x 4.8 μm

Frame Rate (at Default Settings): 240 fps (at fast sensor readout mode and default resolution) / 199 fps (at normal sensor readout mode and default resolution)

Mono / Color: Color

Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.3 W (typical) / ≈3.5 W (max.) when using Power over Ethernet / ≈2.9 W (typical) / ≈3.1 W (max.) @ 12–24 VDC when supplied via I/O connector

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 1 general purpose I/O (GPIO) line

Lens Mount: C-mount

Size (L x W x H): 42.0 x 29 x 29 mm (without lens mount or connectors) / 60.3 x 29 x 29 mm (with lens mount and connectors)

Weight: <90 g
