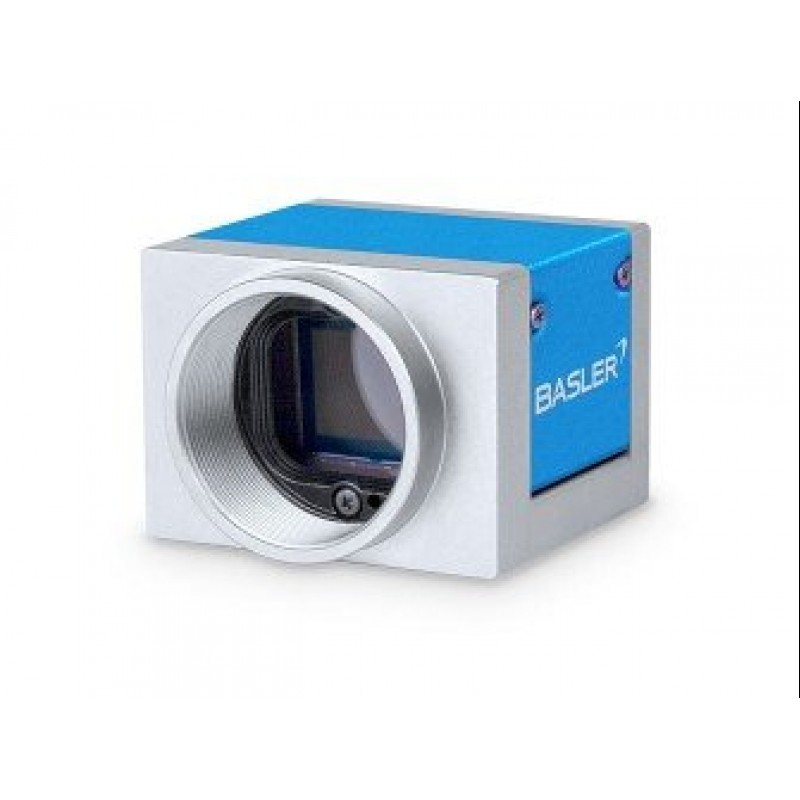

Basler acA4096-40umMED Area Scan Camera (4112 x 2176 px; 4096 x 2168 px; CMOS Sony IMX255LLR)

Resolution (H x V Pixels): 4112 x 2176 (full resolution) 4096 x 2168 (default resolution)

Resolution: 8.9 MP

Sensor Type: Sony IMX255LLR Progressive scan CMOS

Sensor Format: 1.1 inch

Effective Sensor Diagonal: 17.6 mm

Pixel Size (H x V): 3.45 x 3.45 µm

Frame Rate (at Default Settings): 9.4 fps

Mono / Color: Mono

Synchronization: Via hardware trigger, Via software trigger, Via free run

Exposure Time Control: Via hardware trigger, Programmable via the camera API

Camera Power Requirements: ≈3.2 W (typical) when using Power over Ethernet, ≈2.7 W (typical) @ 12–24 VDC when supplied via, I/O connector

Lens Mount: C-mount

Size (ø x L): 50.0 x 40 x 30 mm (without lens mount or connectors) 61.8 x 40 x 30 mm (with lens mount and connectors)

Weight: <90 g
