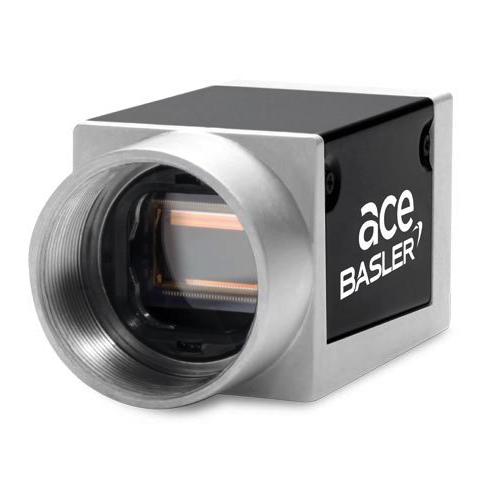

Basler acA2500-60um Area Scan Camera (2592 x 2048 Pixels; onsemi / PYTHON NOIP1SN5000A)

Resolution (H x V Pixels): 2592 x 2048

Resolution: 5 MP

Sensor Type: onsemi / PYTHON NOIP1SN5000A / Progressive scan CMOS / Global shutter

Sensor Format: 1 inch

Effective Sensor Diagonal: 15.9 mm

Pixel Size (H x V): 4.8 x 4.8 µm

Frame Rate (at Default Settings): 60 fps (at fast sensor readout mode) 47 fps (at normal sensor readout mode)

Mono / Color: Mono

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.6 W (typical) @ 5 VDC / ≈3.9 W (max.)

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g

The Basler acA2500-60um USB 3.0 camera with the onsemi PYTHON 5000 CMOS sensor delivers 60 frames per second at 5 MP resolution.
